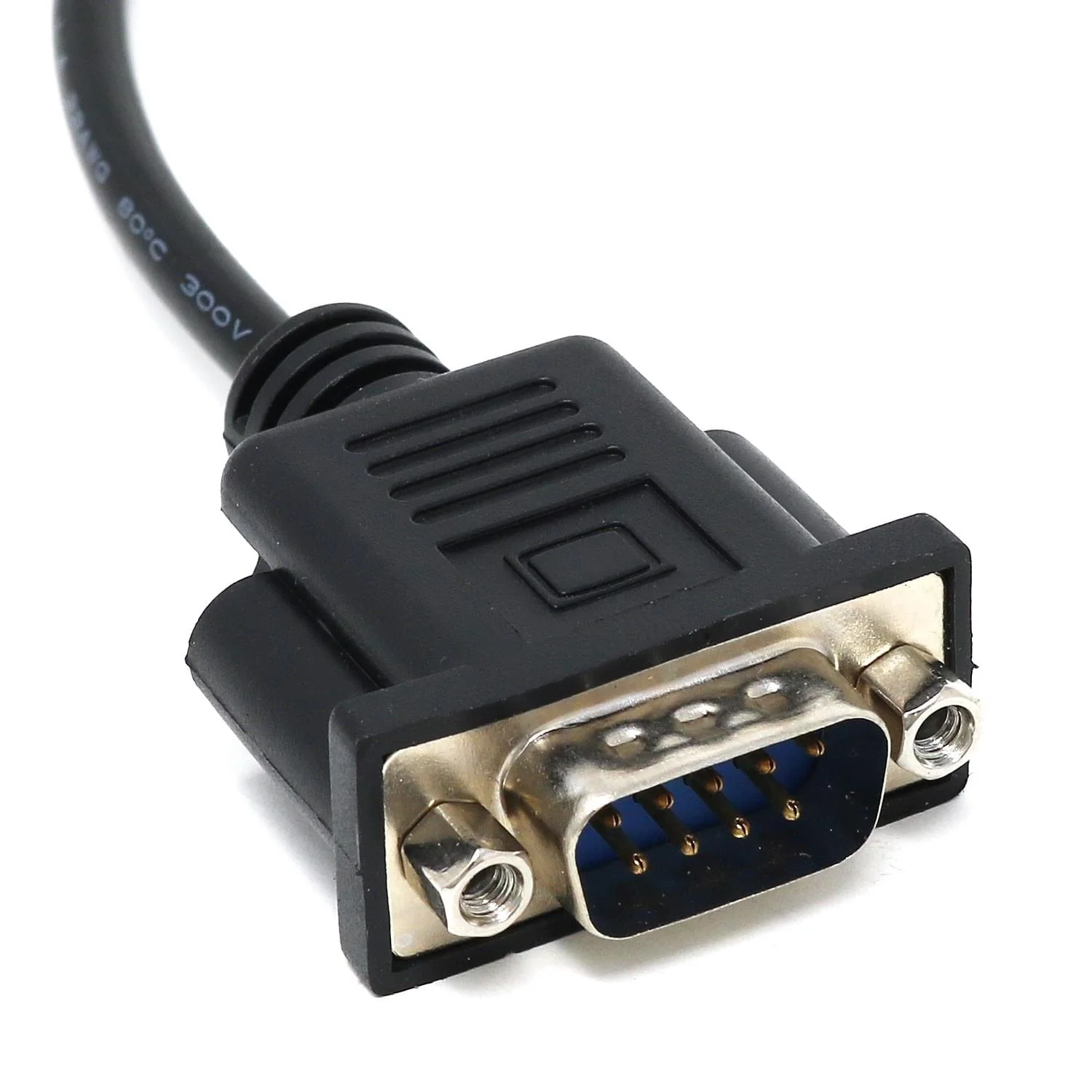

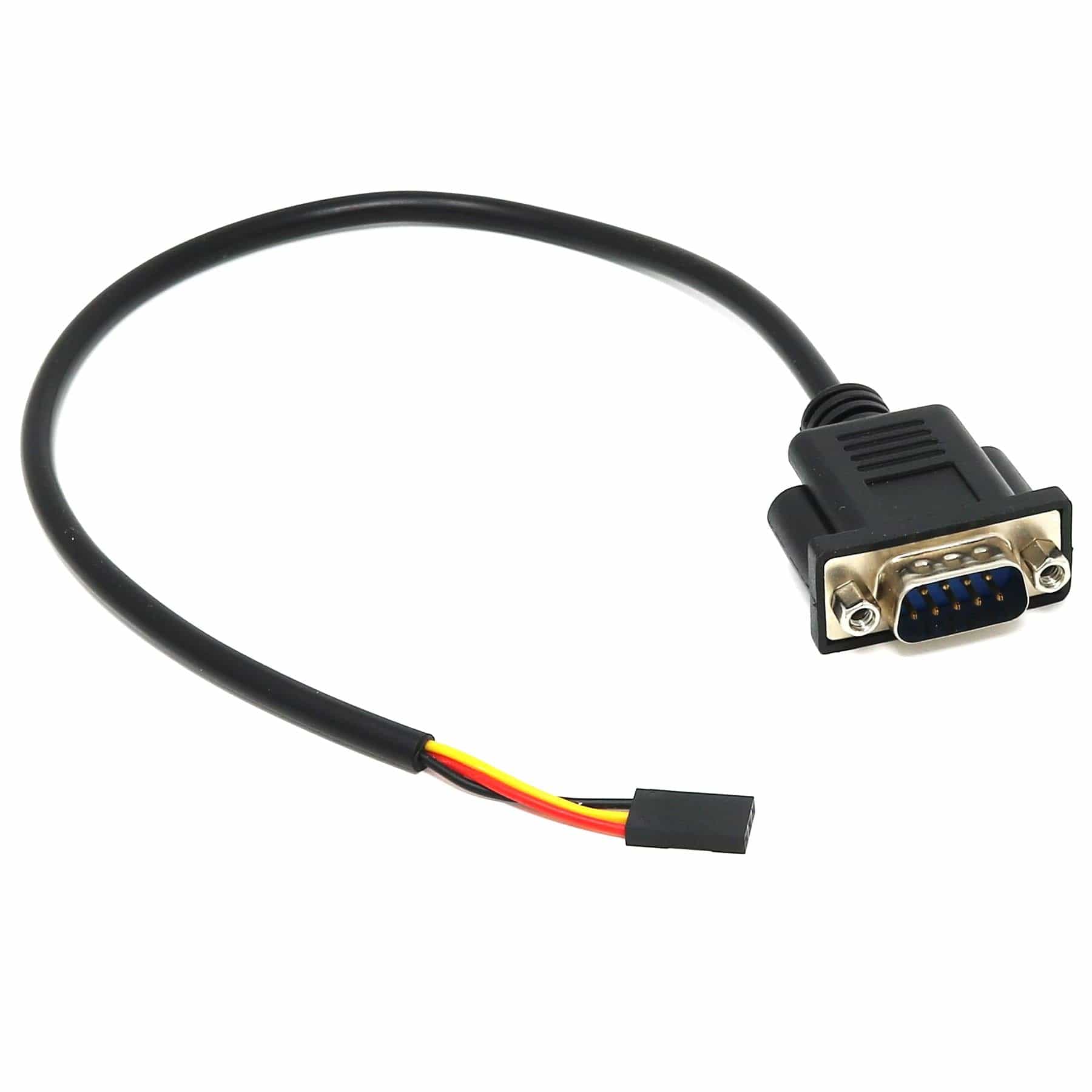

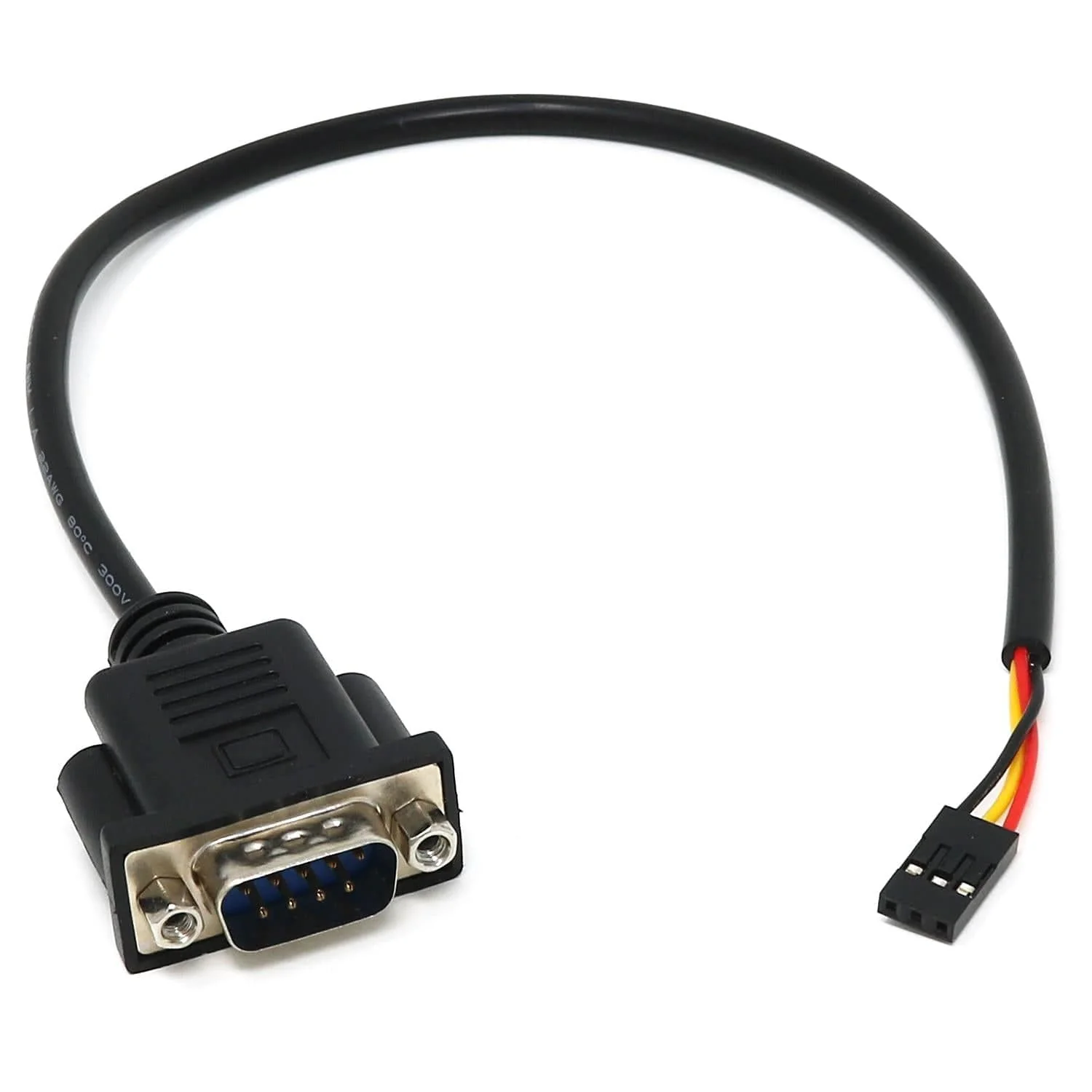

DB9 to 3-pin Adapter Cable
This DB9 to 3-pin adapter cable is the same cable included with the 2-Channel RS232 Pico module.
Whilst we've stocked this to allow owners of the 2-channel RS232 Pico module to purchase a second cable for use with the additional channel, it's also useful for any other RS232 projects requiring a breakout to female jumper headers for use with standard 2.54 pin headers.

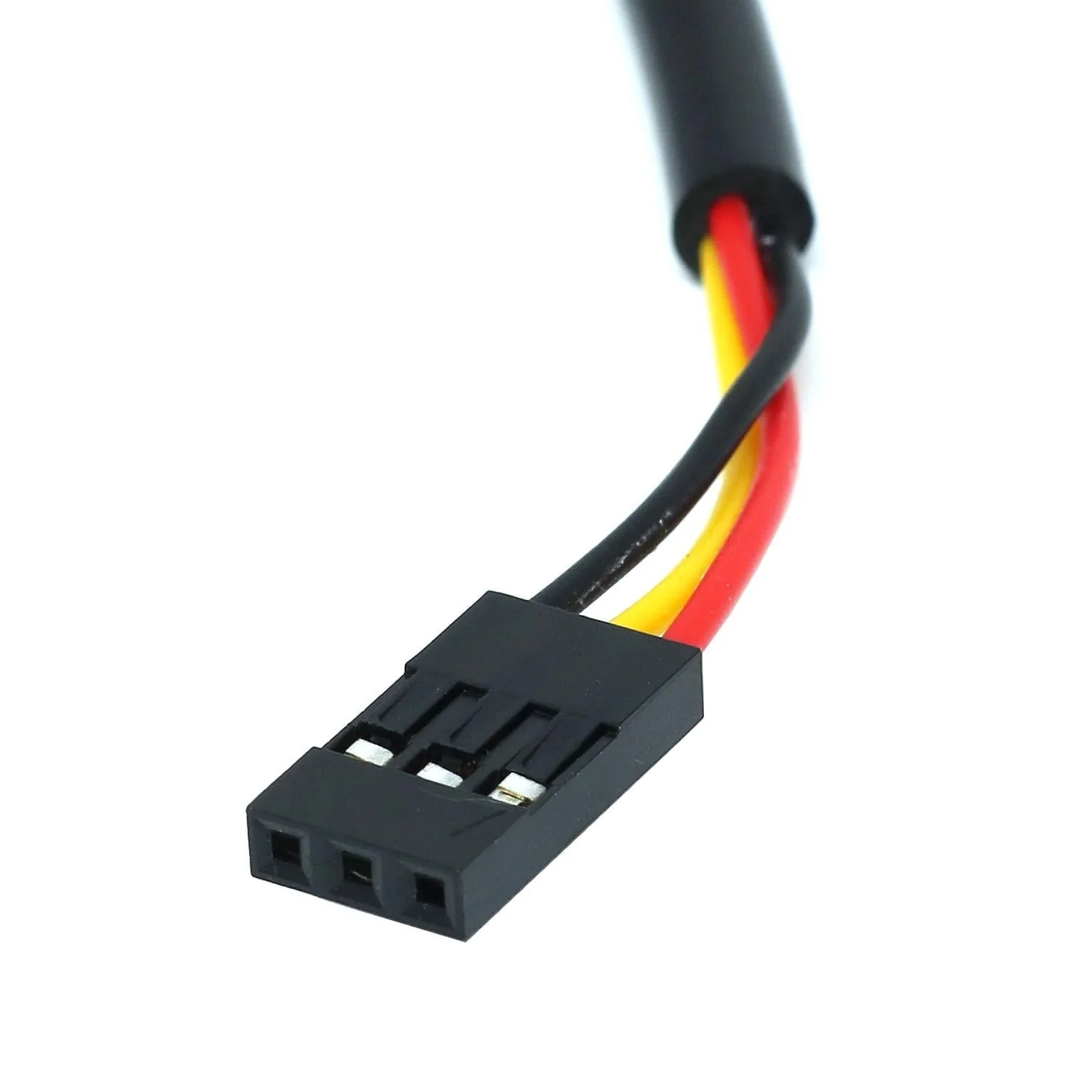

Pinout
- Black wire = GND
- Red wire = RX1
- Yellow wire = TX1
Original: $2.04
-70%$2.04
$0.61
Description
This DB9 to 3-pin adapter cable is the same cable included with the 2-Channel RS232 Pico module.
Whilst we've stocked this to allow owners of the 2-channel RS232 Pico module to purchase a second cable for use with the additional channel, it's also useful for any other RS232 projects requiring a breakout to female jumper headers for use with standard 2.54 pin headers.
Pinout
- Black wire = GND
- Red wire = RX1
- Yellow wire = TX1
