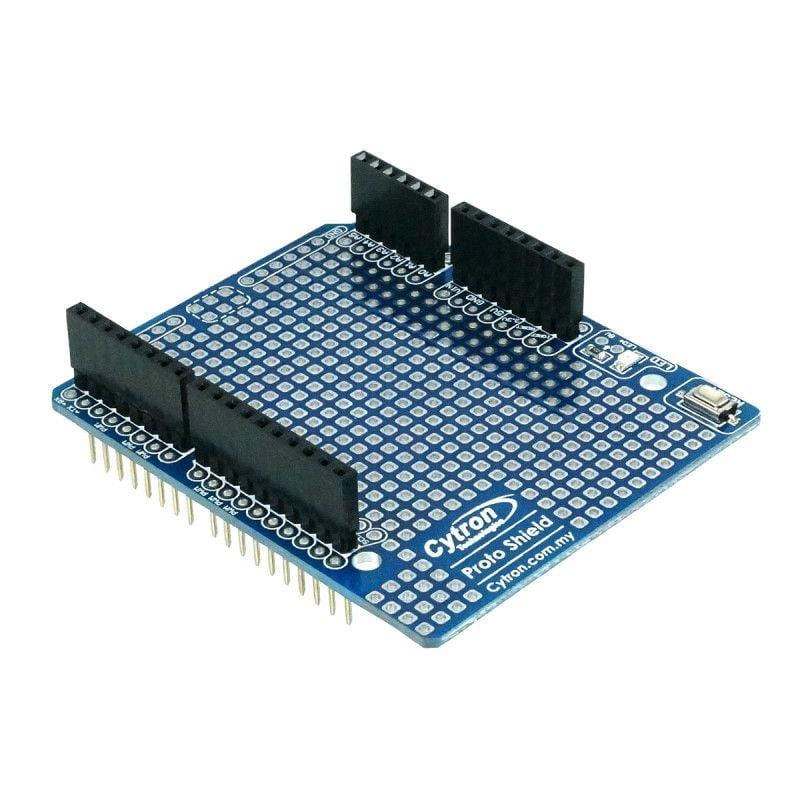

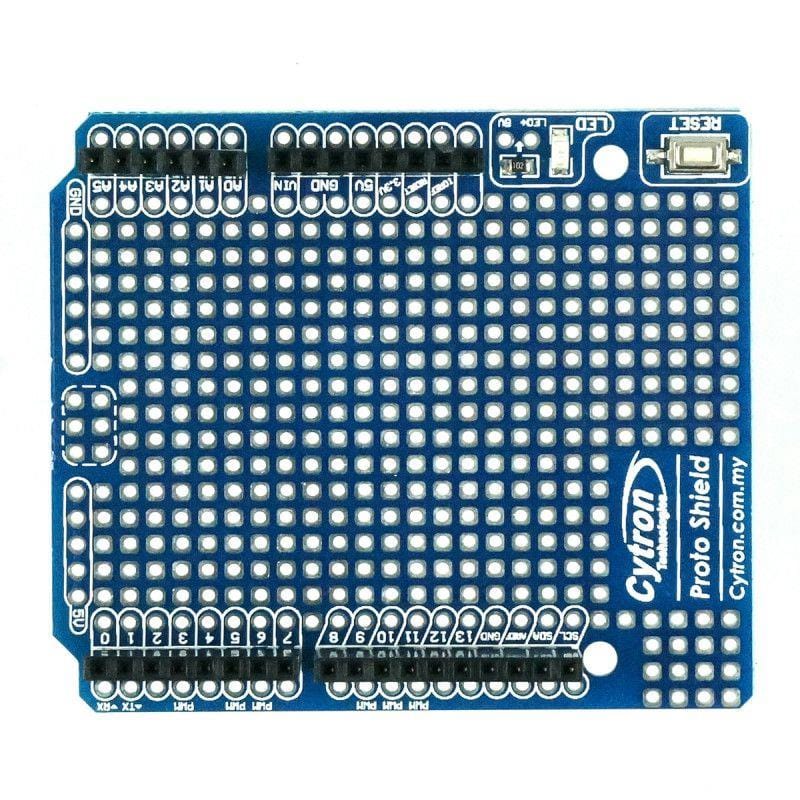

Cytron Prototyping Shield for Arduino

Cytron's Arduino Proto Shield offers maximum prototyping area within the standard Arduino UNO dimensions and on-board extras!

This shield comes fully assembled and features 4 rows of stackable headers and onboard SMD components - an LED, push-button and resistor soldered on the well-labelled PCB.

Great for making more permanent versions of your own project, or just for creating your very own shield!

Features

• Standard 0.1” X 0.1” prototyping area
• Stackable headers
• Reset button
• One LED for use as power or output indicator
• Every pin is extended out to two sides of the headers
• GND and +5V rails
• 4 screw holes for easy mounting on Arduino
• Pre-assembled - no soldering required (apart from adding your own components of course!)
• Dimensions: 68.58mm x 58.42mm

Note: The Cytron Protoshield has been revised to be UNO R3 and Leonardo compatible (including the Maker UNO. Cytron have also prepared the pads for ISP.
