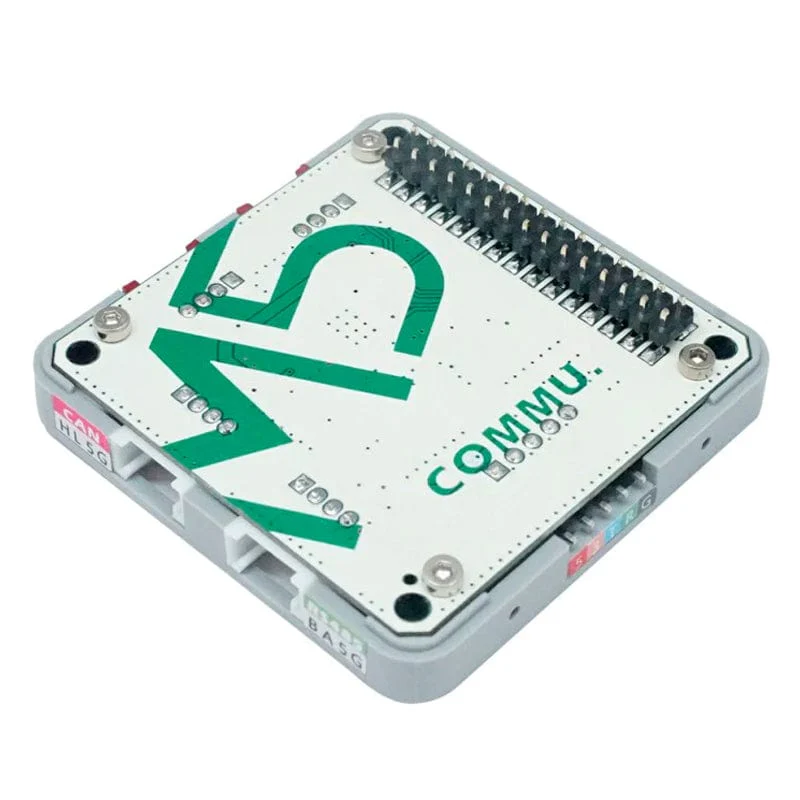

M5Stack COMMU Module Extend RS485/TTL CAN/I2C Port
The COMMU module is a muti-communication-interface-converter. Integrated with 2I2C, 1TTL, 1CAN, 1RS485. The COMMU works with most of the series communications.
Default connection: TTL - UART0, RS485 - UART2. Since ESP32 pin map can be used to re-assign, you can re-assign or re-map the TTL or RS485 interface to other pins.

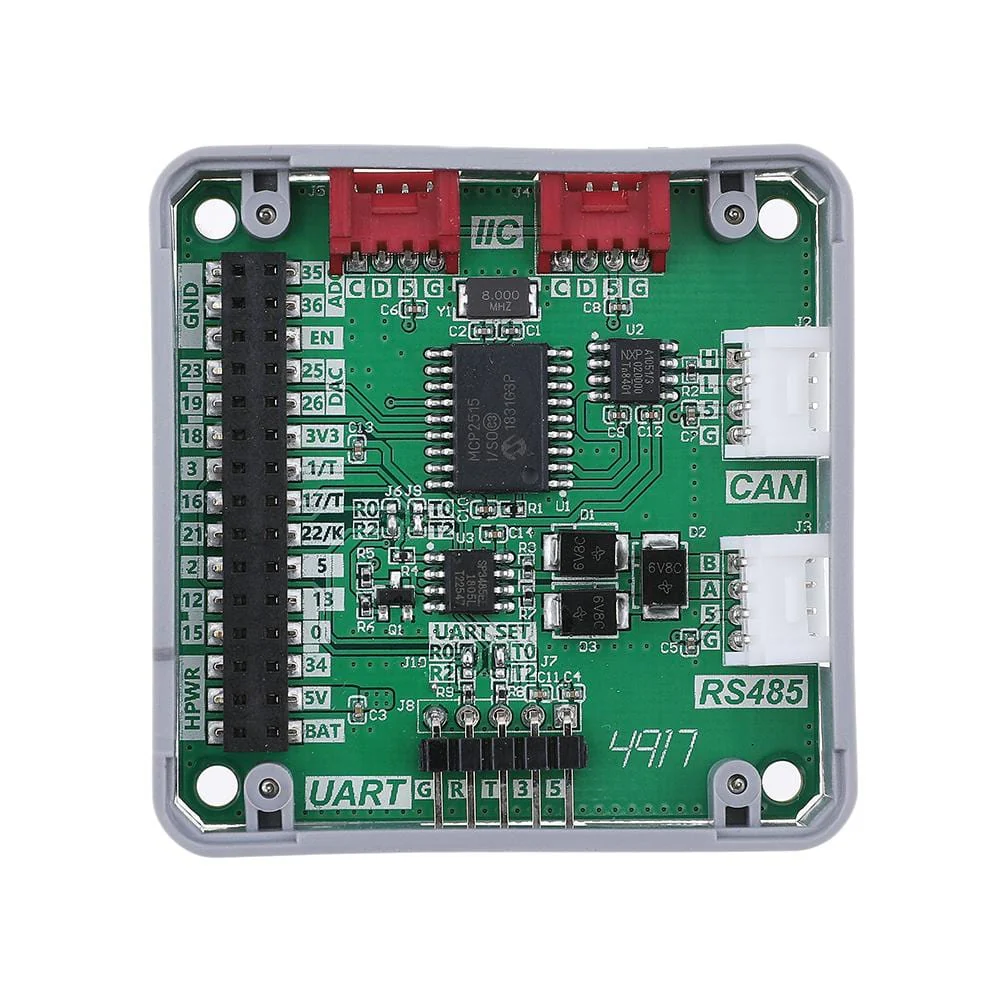

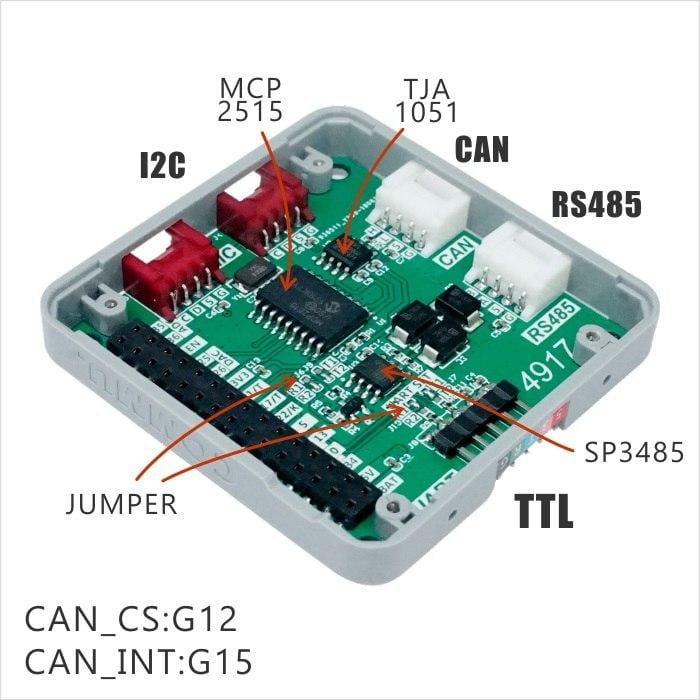

It is a UART Interface by default. But you can switch it to connect with UART2 when the jumpers have been changed. (J6, J7, J9, J10).
Features
- 2x I2C Interface
- 1x CAN Interface
- 1x RS485 Interface
- 1x TTL Interface

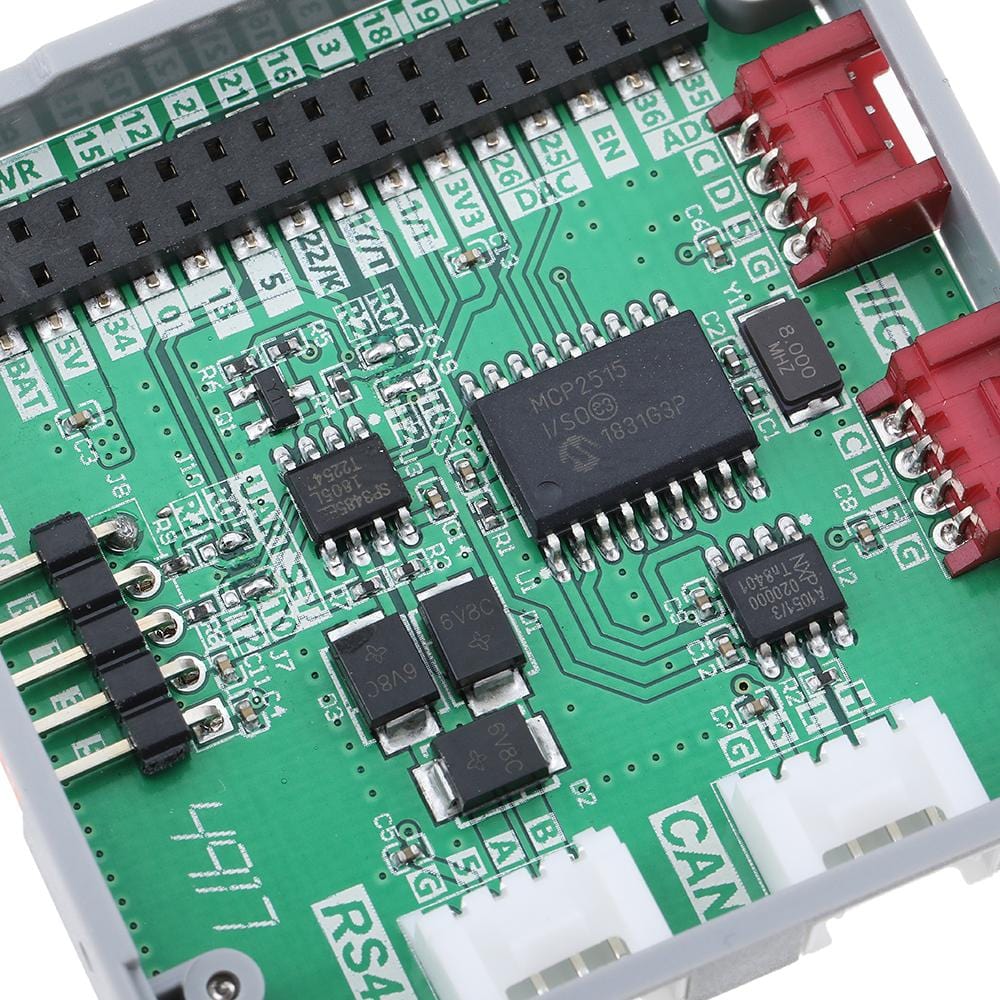

- CAN controller: MCP2515-1/SO
- RS485 Transceiver: SP3485EN-L/TR
Package Contents

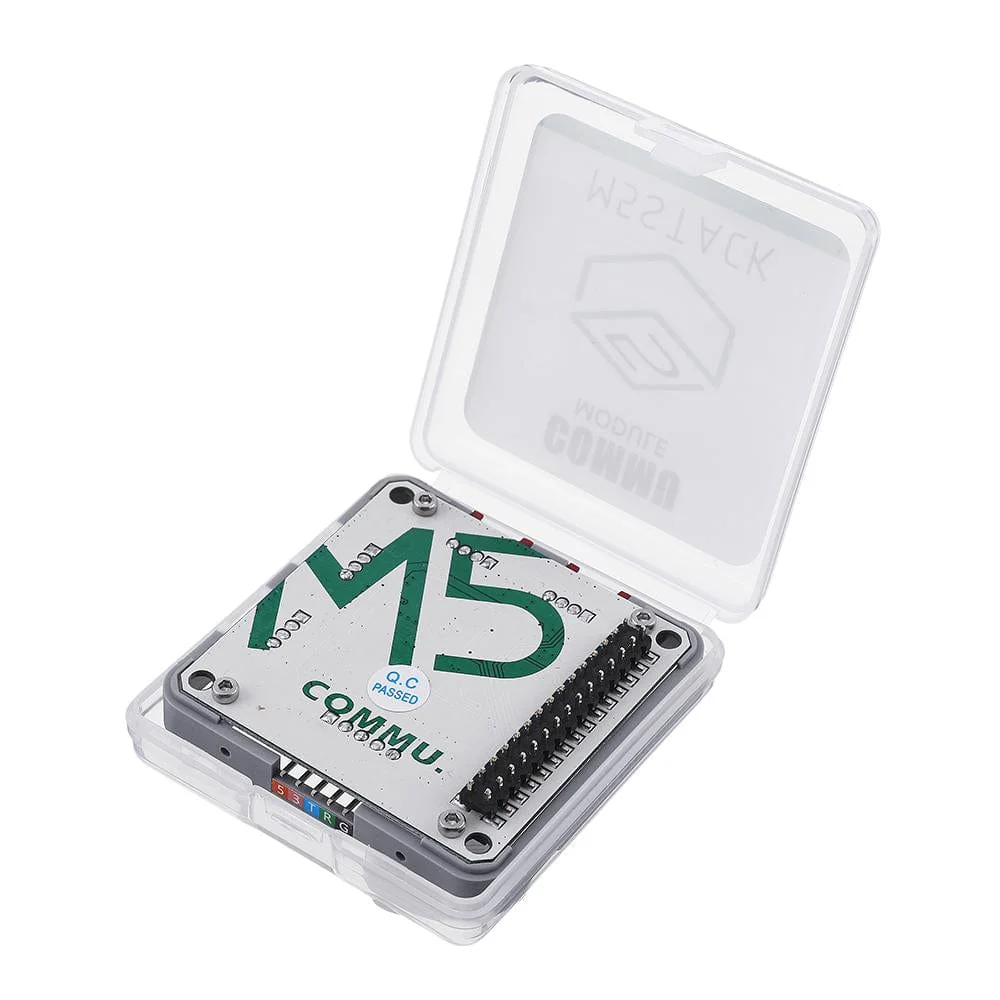

- 1x M5Stack COMMU Module
Specifications
| Resources | Parameter |
|---|---|
| Interface | I2C x2, CAN x1, RS485 x1, TTL x1 |
| CAN Controller | MCP2515-1/SO |
| RS485 transceiver | SP3485EN-L/TR |
| Net weight | 13.5g |
| Gross weight | 24g |

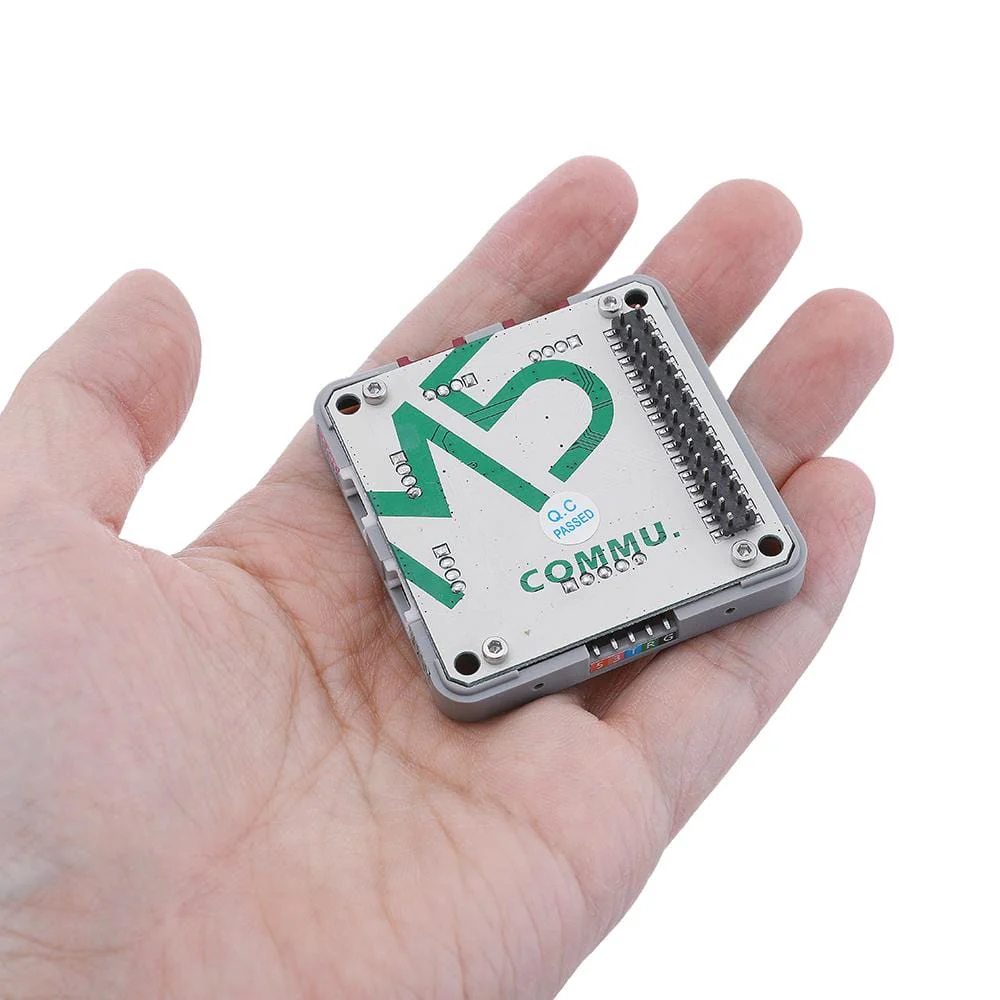

| Product Size | 54.2 x 54.2 x 13mm |
| Package Size | 60 x 57 x 17mm |
| Material | Plastic (PC) |
