Breakout Pi Zero

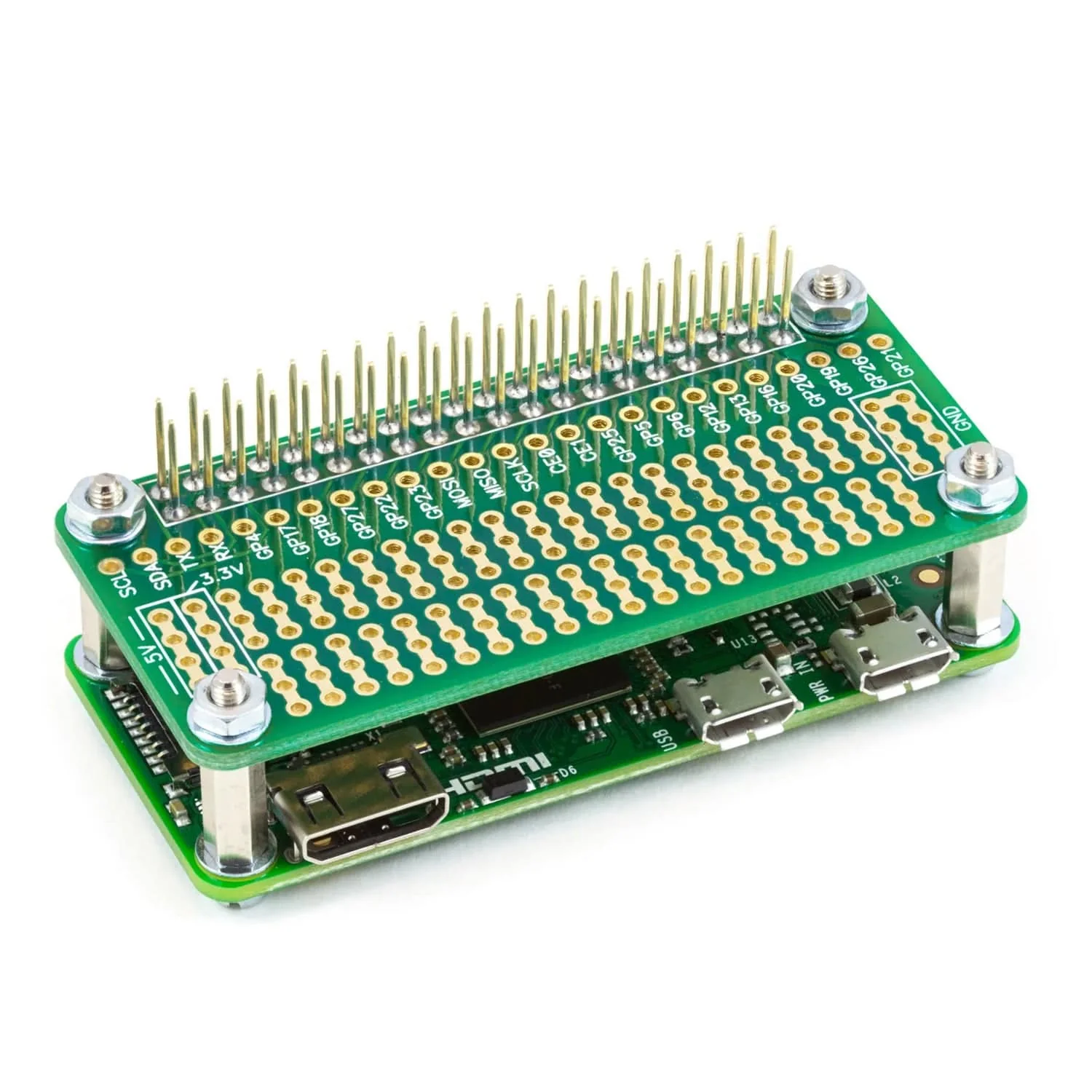

The Breakout Pi Zero is a useful and versatile prototyping expansion board for the Raspberry Pi Zero computer.
Soldering required! This product comes unassembled and unsoldered.
All of the Raspberry Pi GPIO pins except GPIO 24, ID_SC and ID_SD are broken out into separate pads and 3.3 volt, 5 volt and ground rails run down the sides of the prototyping area on board.
The board has a working area with pads arranged into groups of three pins.
The board is supplied as a ready to solder kit with a 40 pin header to connect to the Raspberry Pi.
You can use our optional mount kit pack to secure your prototyping board to your Raspberry Pi.
Introduction:
Compatibility Chart
| Raspberry Pi Model A | No |
| Raspberry Pi Model B | No |
| Raspberry Pi 1 Model A+ | Yes |
| Raspberry Pi 1 Model B+ | Yes |
| Raspberry Pi 2 Model B | Yes |
| Raspberry Pi 3 Model B/B+ | Yes |
| Raspberry Pi 4 Model B | Yes |
| Raspberry Pi Zero / ZeroW | Yes |
Mechanical Dimensions
