BreadPi - Multipurpose HAT for Raspberry Pi [Discontinued]

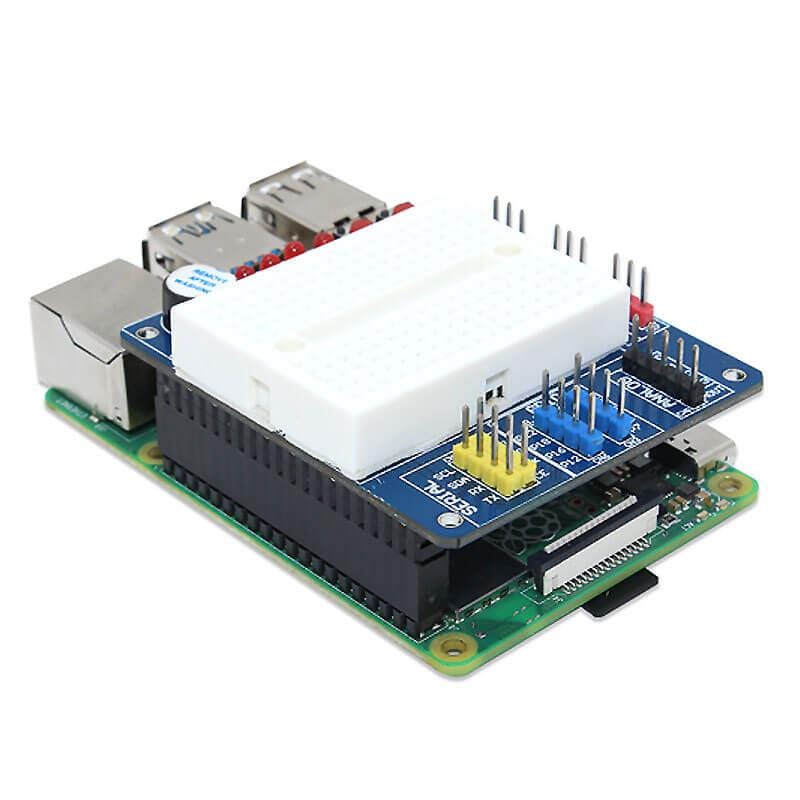

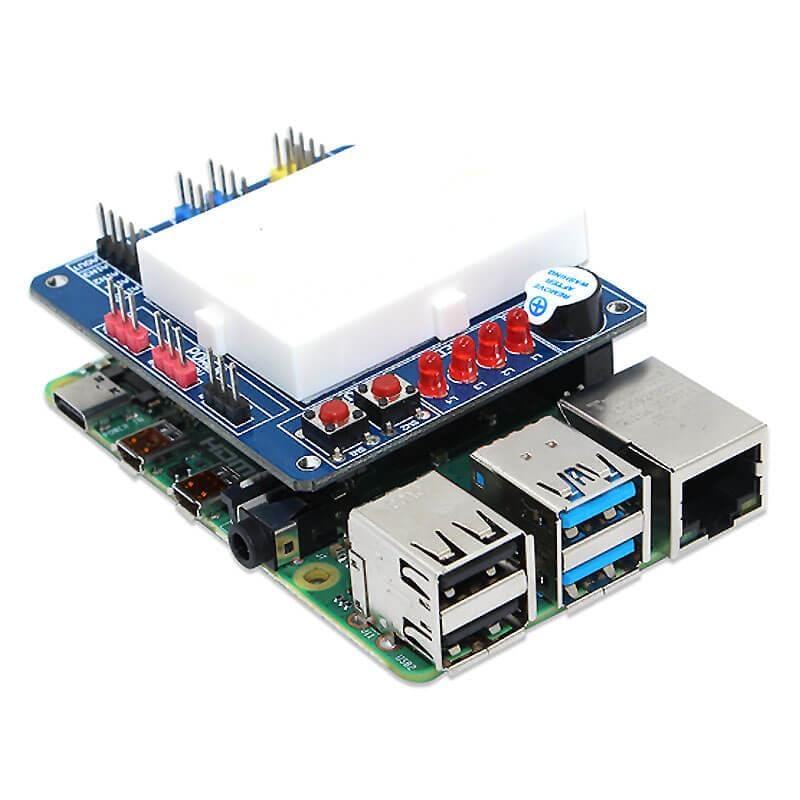

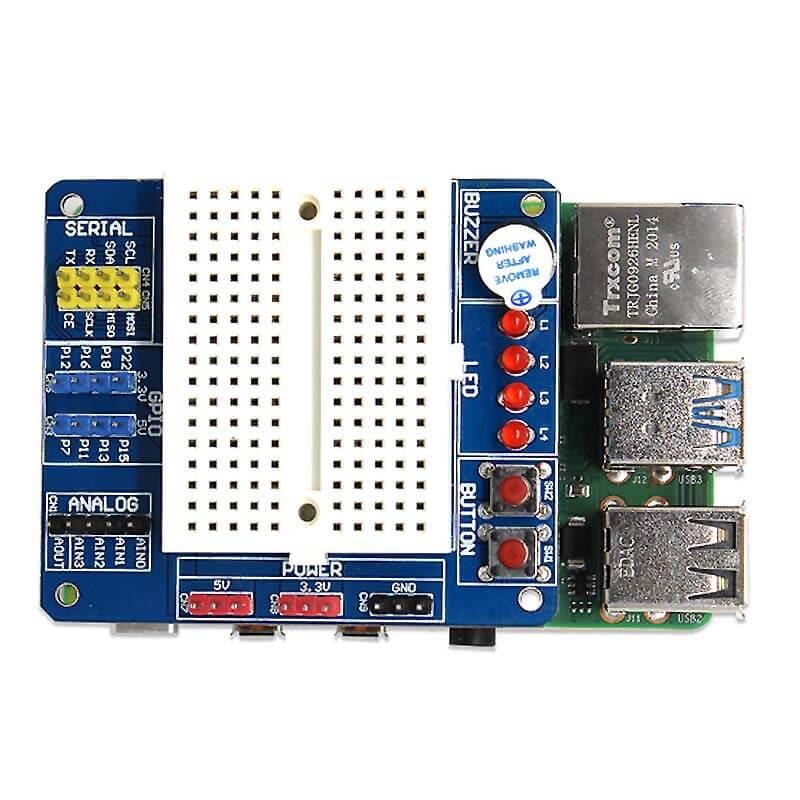

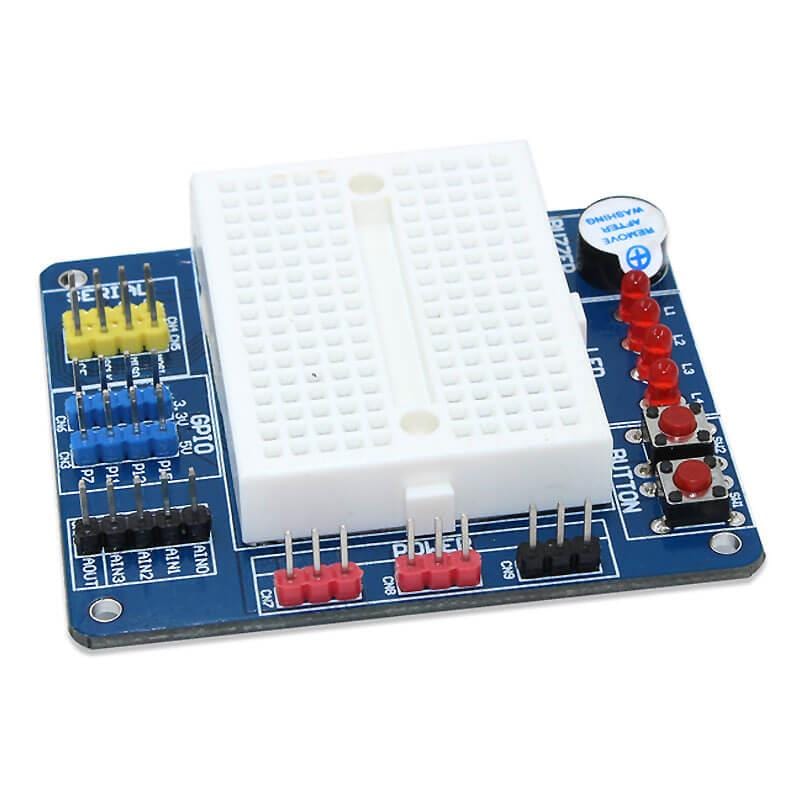

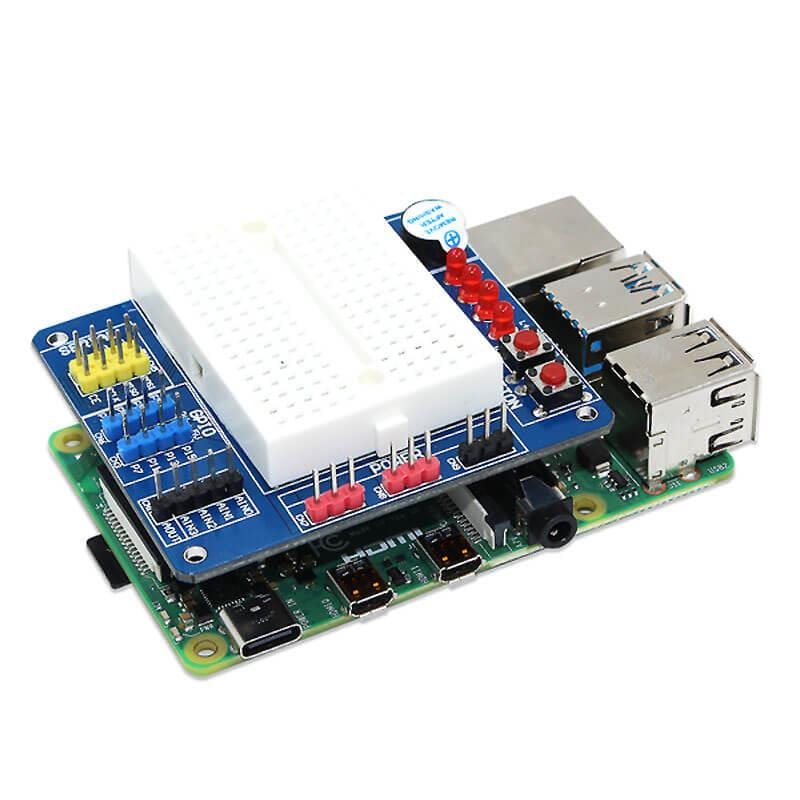

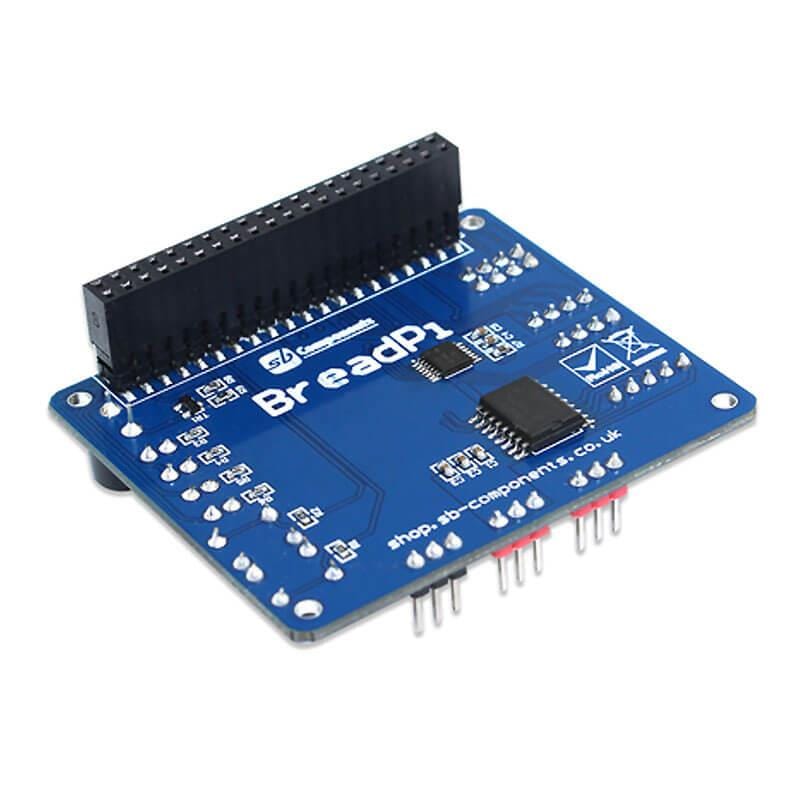

The BreadPi is a multi-purpose HAT for the Raspberry Pi offering lots of handy features. It makes prototyping a project easier by combining easy to access, well-labelled GPIO inputs/outputs with useful onboard components such as the ADC, LEDs, buttons and buzzer.

The BreadPi includes:

• A mini breadboard for prototyping
• Serial, GPIO and power pins broken out to separate headers
• An analog to digital converter (ADC) - great for connecting sensors
• Programmable Buzzer for project feedback
• Programmable LEDs
• Pushbuttons
• 5V/3.3V tolerant inputs

The BreadPi can be interfaced with 3.3V devices/sensors via the ADC, or connect external components for your own circuit using jumper wires with the breadboard provided on the top.

Installation required - see the resources section below.

Features

• Mini-breadboard
• GPIO breakout sections
• ADC - 8-bit Analog read/write
• 1x Buzzer
• 4x Programmable LEDs
• 2x Programmable Buttons
• Easy access to power pins
• 5V/3.3V tolerant inputs

Specification

Operating Voltage	3.3V DC
ADC	Four-channel
DAC	One-channel
Communication Interface	GPIO
Dimensions	65mm x 56mm (approx)

Package Contents

• 1x BreadPi board

Raspberry Pi not included

Resources

• GitHub (including installation steps)
