\n\n | \n | \n | \n\nBluetooth 2.0 Module V3 For Arduino \n | \n\nBluetooth 2.0 Bee Module For Arduino \n | \n\nBluno Link - A USB Bluetooth 4.0 (BLE) Dongle \n | \n\nBluetooth Adapter Mini \n | \n
| \nSKU\n | \n\nTEL0073 \n | \n\nTEL0026 \n | \n\nTEL0023 \n | \n\nTEL0087 \n | \n\nTEL0002 \n | \n
| \nBLE Chip \n | \n\n TI CC2540 \n | \n\nCSR BC417143 \n | \n\nCSR BC417143 \n | \n\n TI CC2540 \n | \n \n— \n | \n
| \nFrequency \n | \n\n2.4GHz \n | \n\n2.4 ~ 2.48GHz unlicensed ISM band \n | \n\n2.4 ~ 2.48GHz unlicensed ISM band \n | \n\n2.4GHz \n | \n\n2.4 ~ 2.48GHz FHSS \n | \n
| \nTransfer rate \n | \n\n1Mbps GFSK \n | \n\nAsynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps \n | \n\nAsynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps \n | \n\n1Mbps GFSK \n | \n\n3Mbps \n | \n
| \nBLE protocol \n | \n\nV4.0 \n | \n\nV2.0 + EDR \n | \n\nV2.0 + EDR \n | \n\nV4.0 \n | \n\nV2.0 \n | \n
| \nModulation \n | \n\nGFSK \n | \n\nGFSK \n | \n\nGFSK \n | \n\nGFSK \n | \n\nFHSS \n | \n
| \nPower consumption \n | \n\n10.6mA average, ready mode: 8.7mA \n | \n\n— \n | \n\n— \n | \n\n10.6mA average, ready mode: 8.7mA \n | \n\n— \n | \n
| \nSensitivity \n | \n\n-93dBm \n | \n\n≤-84dBm \n | \n\n≤-84dBm \n | \n\n-93dBm \n | \n\n≤-84dBm \n | \n
| Working Voltage | \n\n 3.3V \n | \n\n+3.5 V ~ +8 V DC and 3.3V DC/50mA \n | \n\n3.3V \n | \n\n3.3V \n | \n\n— \n | \n
| \nOperating temperature \n | \n\n -40 ℃ ~ +85 ℃ \n | \n\n-20 ℃ ~ +55 ℃ \n | \n\n-20 ℃ ~ +55 ℃ \n | \n\n-10 ℃ ~ +85 ℃ \n | \n\n-20℃ ~ +55℃ \n | \n
| \nTransmission distance \n | \n\n30m \n | \n\n20 ~ 30m \n | \n\n20 ~ 30m \n | \n\n10 ~ 20m \n | \n\n<10m \n | \n
| \nDimension \n | \n\n32*22mm \n | \n\n40*20*13mm \n | \n\n32*24*9mm \n | \n\n32mm * 16mm \n | \n\n20*16*8mm \n | \n
| \nWeight (g) \n | \n\n10 \n | \n\n10 \n | \n\n12 \n | \n\n10 \n | \n\n10 \n | \n
| \nAT command to debug the BLE \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n— \n | \n
| \nmaster-salve machine switch \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n— \n | \n
| \nTransparent transmission \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n— \n | \n
| \nWireless programming \n | \n\n√ (Available for Bluno series) \n | \n— \n | \n— \n | \n\n√ \n | \n\n— \n | \n
| \niBeacons \n | \n\n√ \n | \n— \n | \n— \n | \n— \n | \n\n— \n | \n
| \nBLE HID \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n
| \nMobile App Control \n | \n\n√ \n | \n\n√ \n | \n\n√ \n | \n— \n | \n\n— \n | \n
| Key Features | \n\nsupport Android and IOS applications,open source code,suitable for secondary development by the user \n | \n\nCompatible with APC220 communication interface, can be directly used in I/O Expansion Shield, Romeo, XBoard and etc,. \n | \n\nIt can be plugged into the Arduino controller using the XBEE base for Bluetooth wireless control. \n | \n\nStandard USB interface. Support for firmware update via USB. Install Arduino UNO USB driver, default host mode. \n | \n\nUSB2.0 standard interface. supports the native Windows Bluetooth stack. \n | \n
\nSpecification\n
\n
- \n
- Bluetooth chip: CSR BC417143 \n
- Bluetooth protocol: Bluetooth Specification v2.0 + EDR \n
- USB Protocol: USB v1.1/2.0 \n
- Operating frequency: 2.4 ~ 2.48GHz unlicensed ISM band \n
- Modulation: GFSK (Gaussian Frequency Shift Keying) \n
- Transmit Power: ≤ 4dBm, Class 2 \n
- Transmission distance: 20 ~ 30m in free space \n
- Sensitivity: ≤-84dBm at 0.1% BER \n
- Transfer rate: Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps \n
- Safety features: Authentication and encryption \n
- Support profiles: Bluetooth serial port \n
- Serial port settings: 1200 ~ 1382400 / N / 8 / 1 \n
- Baud rate default: 9600 \n
- Pair: 1234 \n
- Input Voltage: +3.3 DC/50mA \n
- Operating temperature: -20 ℃ ~ +55 ℃ \n
- Module Size: 32 × 24 × 9mm (1.26 x 0.9 x 0.35in) \n
Documents\n
\n
- \n
- Wiki Doc \n
- Bluetooth Module Datasheet \n
\nShipping List\n
\n
","image":["https://img.tphlabs.shop/images/product/bluetooth-2-0-bee-module-for-arduino-1.jpg","https://img.tphlabs.shop/images/product/bluetooth-2-0-bee-module-for-arduino-2.jpg","https://img.tphlabs.shop/images/product/bluetooth-2-0-bee-module-for-arduino-3.jpg"],"sku":"bluetooth-2-0-bee-module-for-arduino","brand":{"@type":"Brand","name":"The Pi Hut"},"offers":{"@type":"AggregateOffer","lowPrice":6.04,"highPrice":6.04,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://tphlabs.shop/products/bluetooth-2-0-bee-module-for-arduino","offerCount":1}}- \n
- Bluetooth Bee x1 \n
Bluetooth 2.0 Bee Module For Arduino [Discontinued]

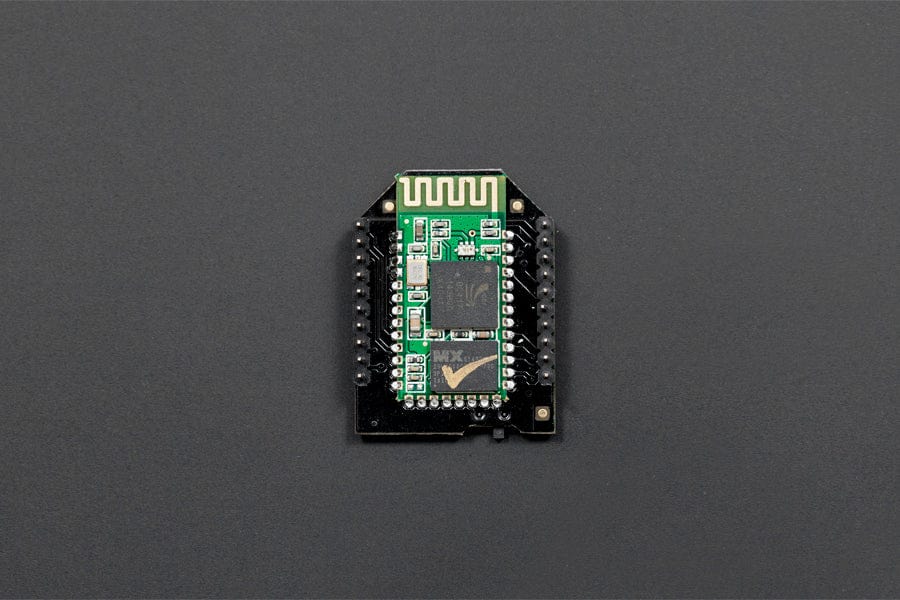

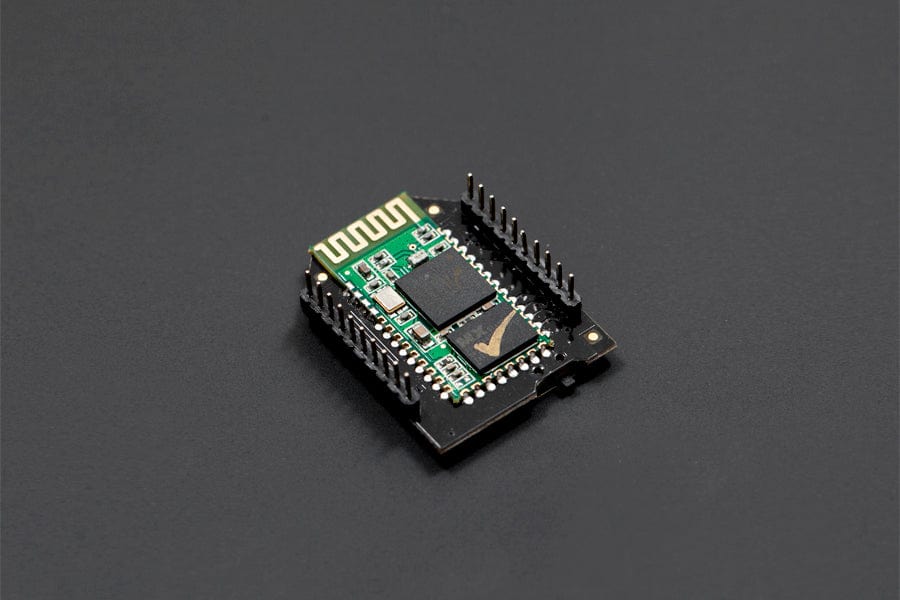

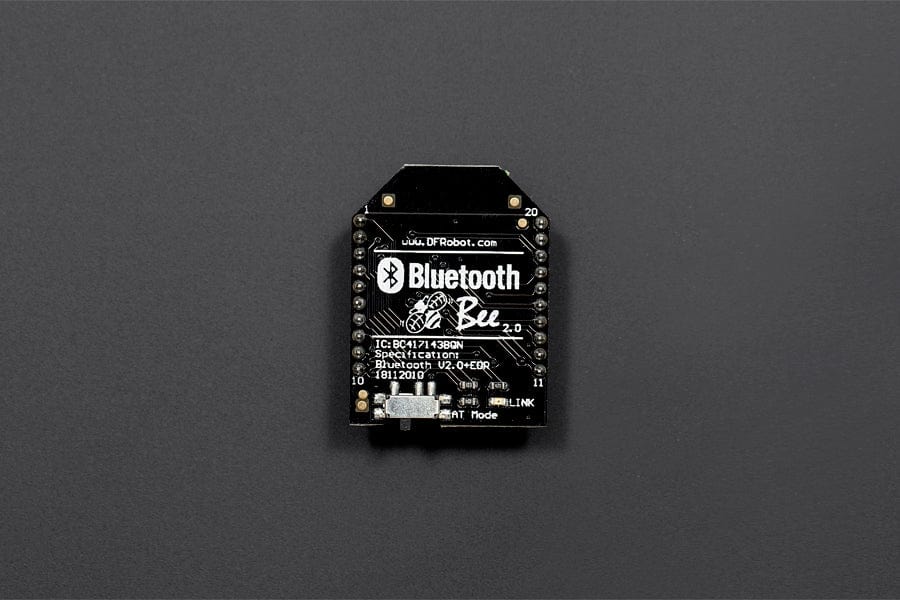

This DFRobot Bluetooth Bee Bluetooth wireless module adapts XBEE design. It has a compact size, the pinout is compatible with XBEE which is suitable for all kinds of microcontroller such as Arduino who have 3.3V power out, also the module supports AT commands for parameter setting. (NOTE: You have to use a XBEE adapter for parameter setting. )
The Bluetooth Bee modules comes with an on-board antenna, the antenna provides better signal quality. It acts like a transparent serial port, which works with a variety of Bluetooth adapter and Bluetooth phone.
The module has been tested with all the Bluetooth adapter on the market matching to use (with the Bluetooth, including laptops and mobile phones).
This arduino bluetooth module fits Gravity Arduino IO Expansion shield, Gravity Mega Sensor Shield, Romeo V2 and DFRduino Leonardo which has xbee socket
Specification
- Bluetooth chip: CSR BC417143
- Bluetooth protocol: Bluetooth Specification v2.0 + EDR
- USB Protocol: USB v1.1/2.0
- Operating frequency: 2.4 ~ 2.48GHz unlicensed ISM band
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Transmit Power: ≤ 4dBm, Class 2
- Transmission distance: 20 ~ 30m in free space
- Sensitivity: ≤-84dBm at 0.1% BER
- Transfer rate: Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps
- Safety features: Authentication and encryption
- Support profiles: Bluetooth serial port
- Serial port settings: 1200 ~ 1382400 / N / 8 / 1
- Baud rate default: 9600
- Pair: 1234
- Input Voltage: +3.3 DC/50mA
- Operating temperature: -20 ℃ ~ +55 ℃
- Module Size: 32 × 24 × 9mm (1.26 x 0.9 x 0.35in)
Documents
- Wiki Doc
- Bluetooth Module Datasheet
Shipping List
- Bluetooth Bee x1
$6.04
Original: $20.15
-70%Bluetooth 2.0 Bee Module For Arduino [Discontinued]—
$20.15
$6.04
Description
This DFRobot Bluetooth Bee Bluetooth wireless module adapts XBEE design. It has a compact size, the pinout is compatible with XBEE which is suitable for all kinds of microcontroller such as Arduino who have 3.3V power out, also the module supports AT commands for parameter setting. (NOTE: You have to use a XBEE adapter for parameter setting. )
The Bluetooth Bee modules comes with an on-board antenna, the antenna provides better signal quality. It acts like a transparent serial port, which works with a variety of Bluetooth adapter and Bluetooth phone.
The module has been tested with all the Bluetooth adapter on the market matching to use (with the Bluetooth, including laptops and mobile phones).
This arduino bluetooth module fits Gravity Arduino IO Expansion shield, Gravity Mega Sensor Shield, Romeo V2 and DFRduino Leonardo which has xbee socket
Specification
- Bluetooth chip: CSR BC417143
- Bluetooth protocol: Bluetooth Specification v2.0 + EDR
- USB Protocol: USB v1.1/2.0
- Operating frequency: 2.4 ~ 2.48GHz unlicensed ISM band
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Transmit Power: ≤ 4dBm, Class 2
- Transmission distance: 20 ~ 30m in free space
- Sensitivity: ≤-84dBm at 0.1% BER
- Transfer rate: Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps
- Safety features: Authentication and encryption
- Support profiles: Bluetooth serial port
- Serial port settings: 1200 ~ 1382400 / N / 8 / 1
- Baud rate default: 9600
- Pair: 1234
- Input Voltage: +3.3 DC/50mA
- Operating temperature: -20 ℃ ~ +55 ℃
- Module Size: 32 × 24 × 9mm (1.26 x 0.9 x 0.35in)
Documents
- Wiki Doc
- Bluetooth Module Datasheet
Shipping List
- Bluetooth Bee x1
