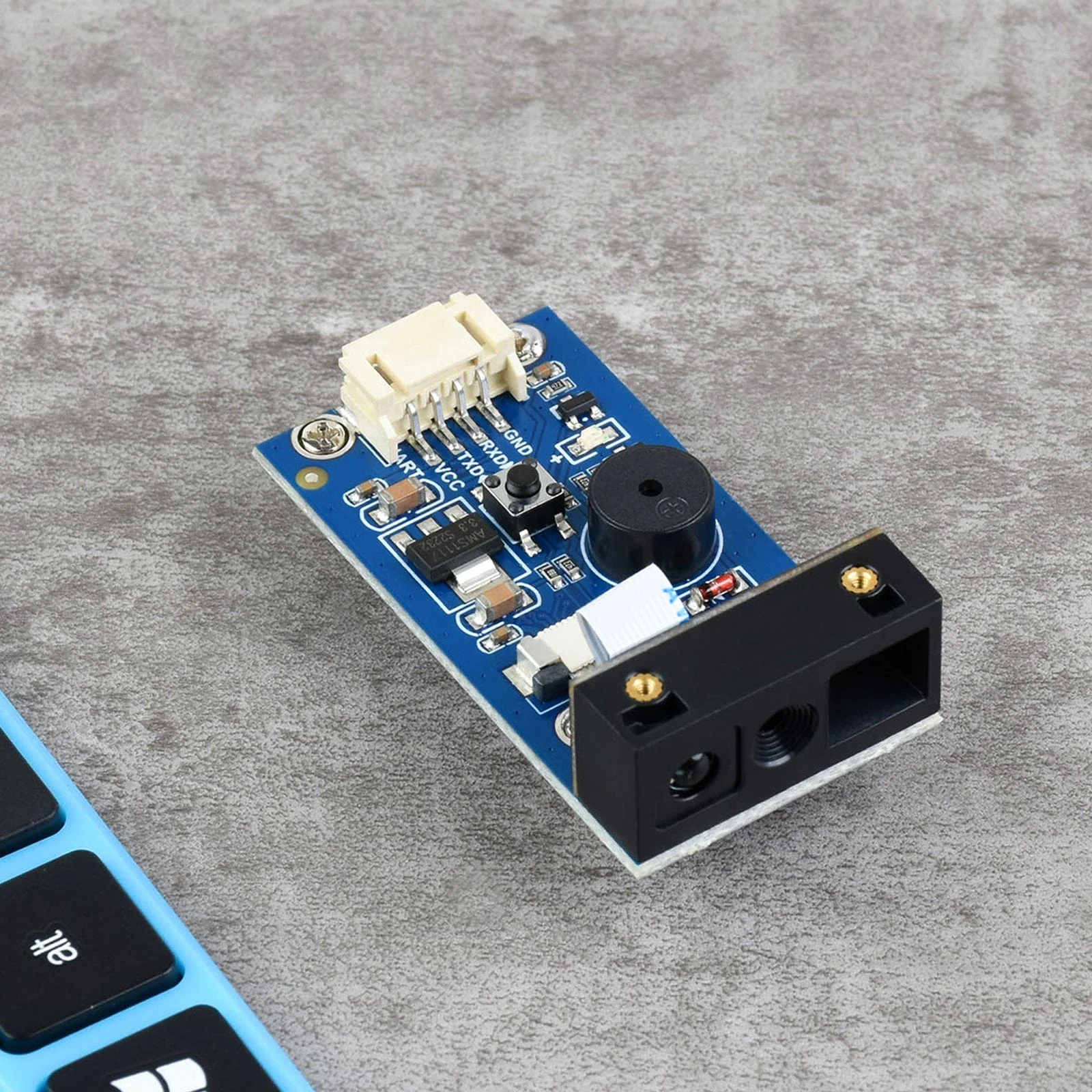

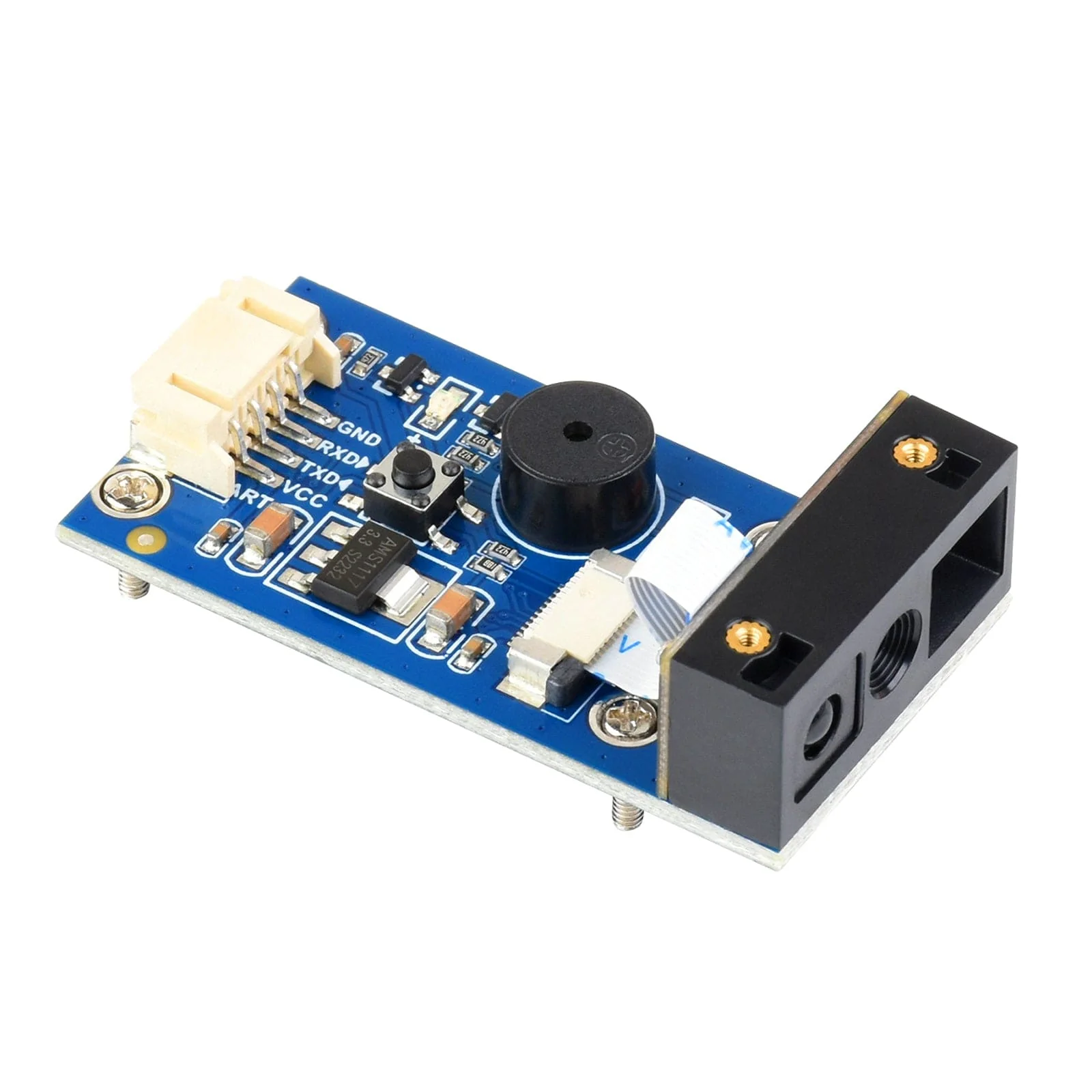

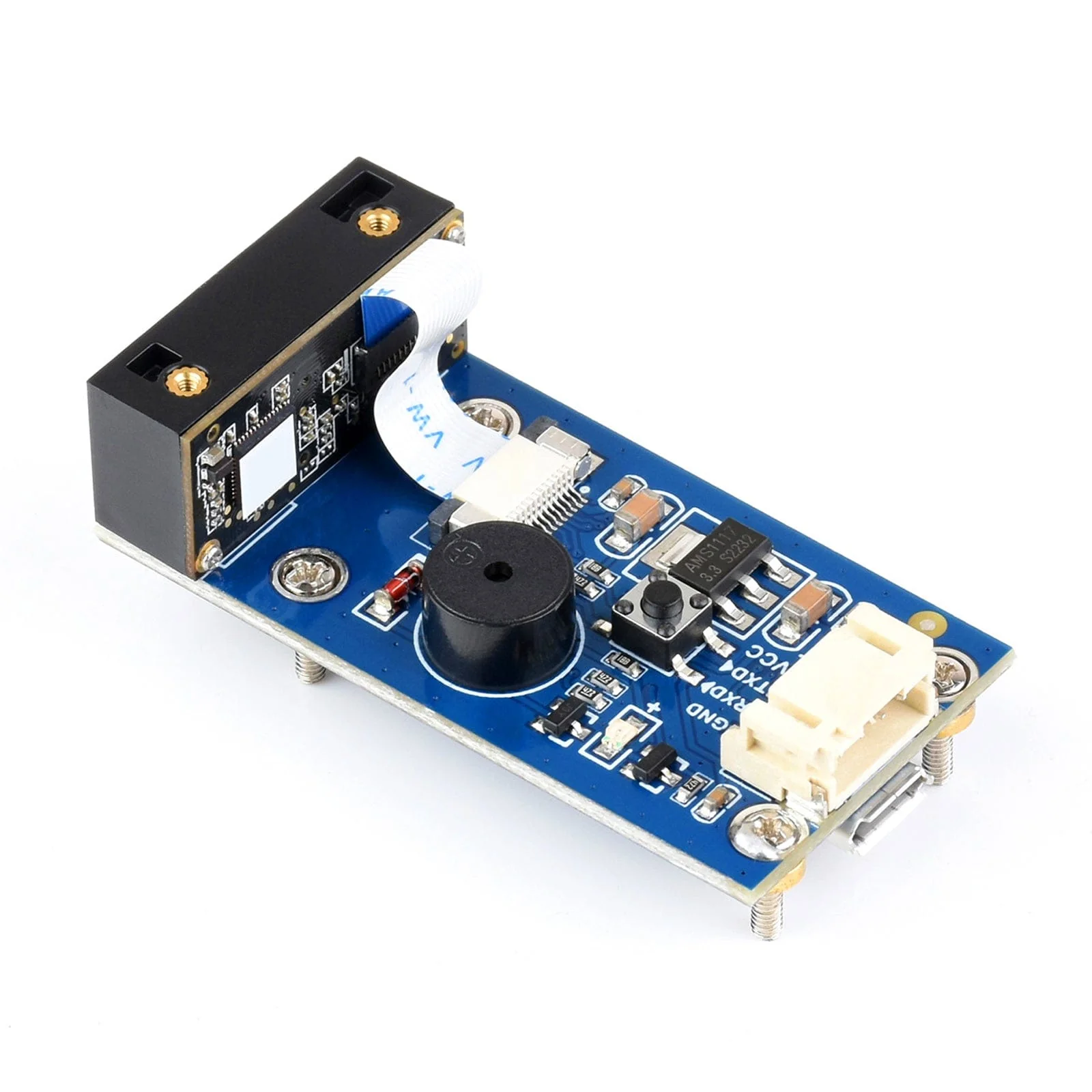

Barcode Scanner Module (1D/2D barcodes)

This is a small 1D/2D code reader that utilizes an intelligent image recognition algorithm. It will decode both barcodes and 2D codes that have been printed on paper or displayed on a screen, fast and accurately.

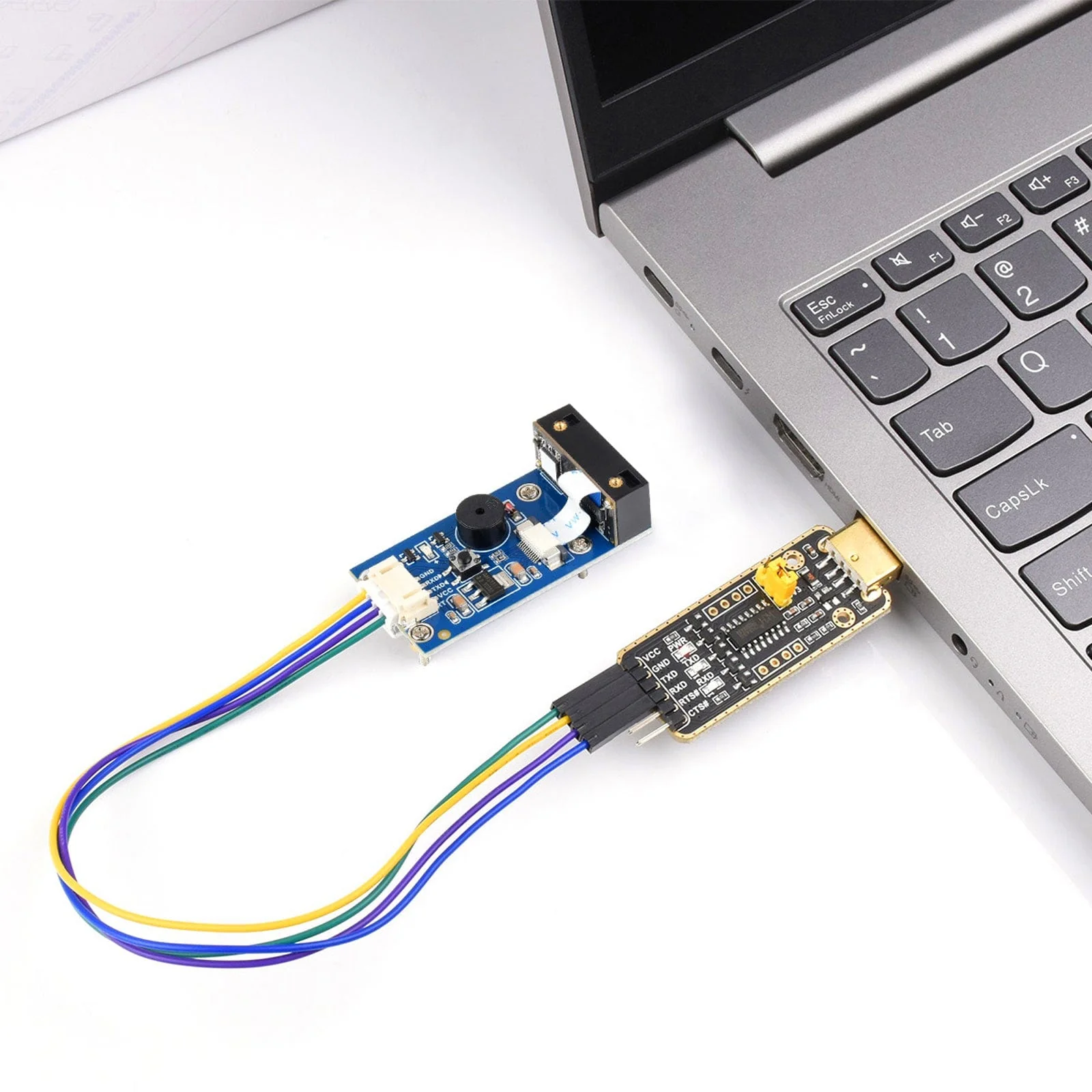

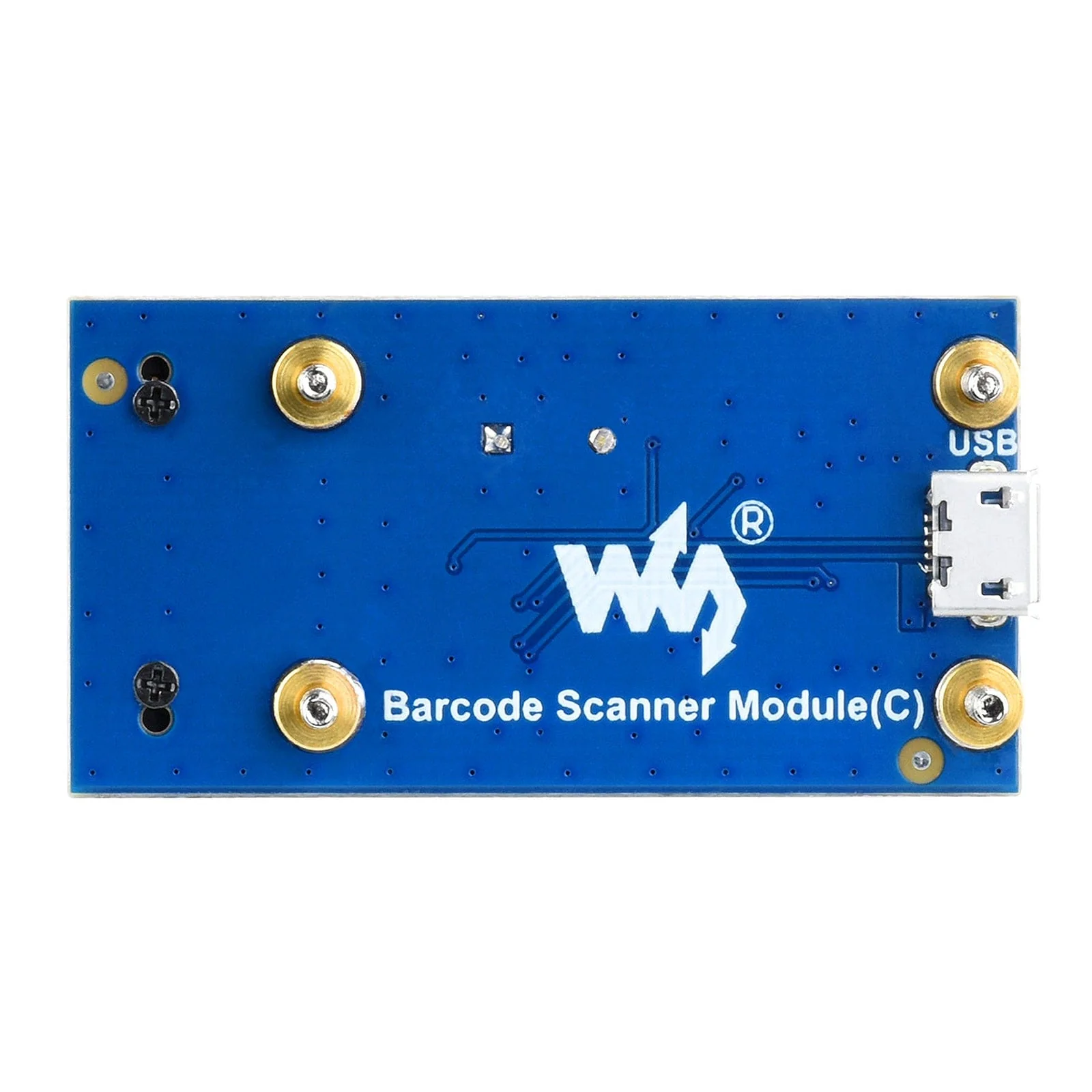

An onboard USB and UART interface makes this little reader quite versatile as it can be directly plugged into a computer, or be easily integrated with popular SBC's like the Raspberry Pi , Raspberry Pi Zero, or the Beagle Bone Black.

Online resources including datasheets, example code, and connection information can be found on the Waveshare Wiki page for this module.

UART cable is NOT included

Features

• Easy to use and requires no knowledge of image recognition
• Decodes various common 1D/2D codes such as Barcode, QR codes, etc.

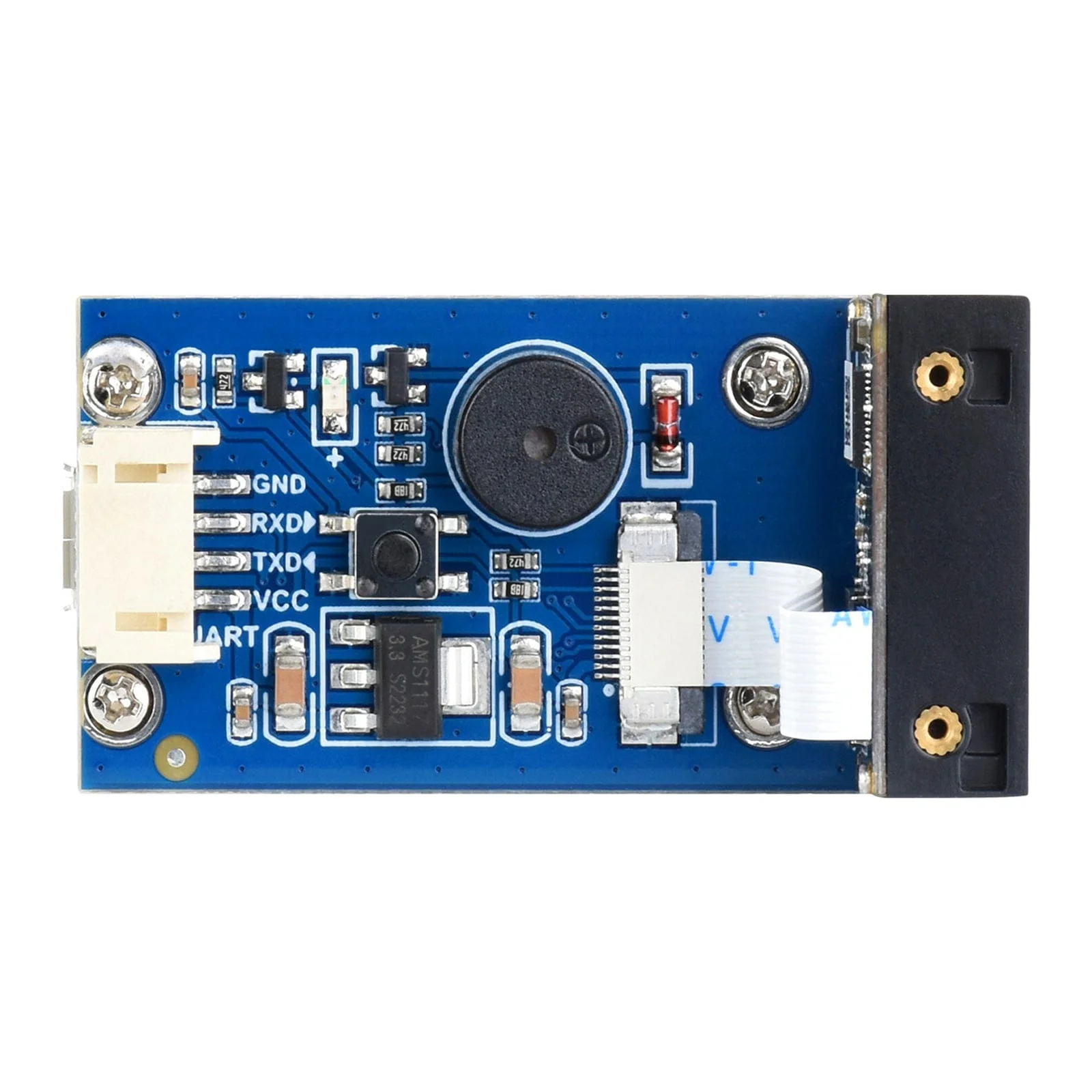

• Onboard micro USB and UART serial port, allows for connections to computers or embedded devices
• Configurable via scanning of various "configuration codes"
• The onboard light source means no artificial lighting is needed

Specifications

• Operating voltage: 5V
• Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
• Operating temperature: 0°C~60°C
• Operating humidity: 5%~95% (Non-condensing)
• Communication interface: UART, USB
• Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
• Decodes 2D codes: QR code, Data Matrix, PDF417
• Light source: white
• Scan angels: roll 360°, skew ±65°, pitch ±60°
• Field of view: 28° (horizontal), 21.5° (vertical)

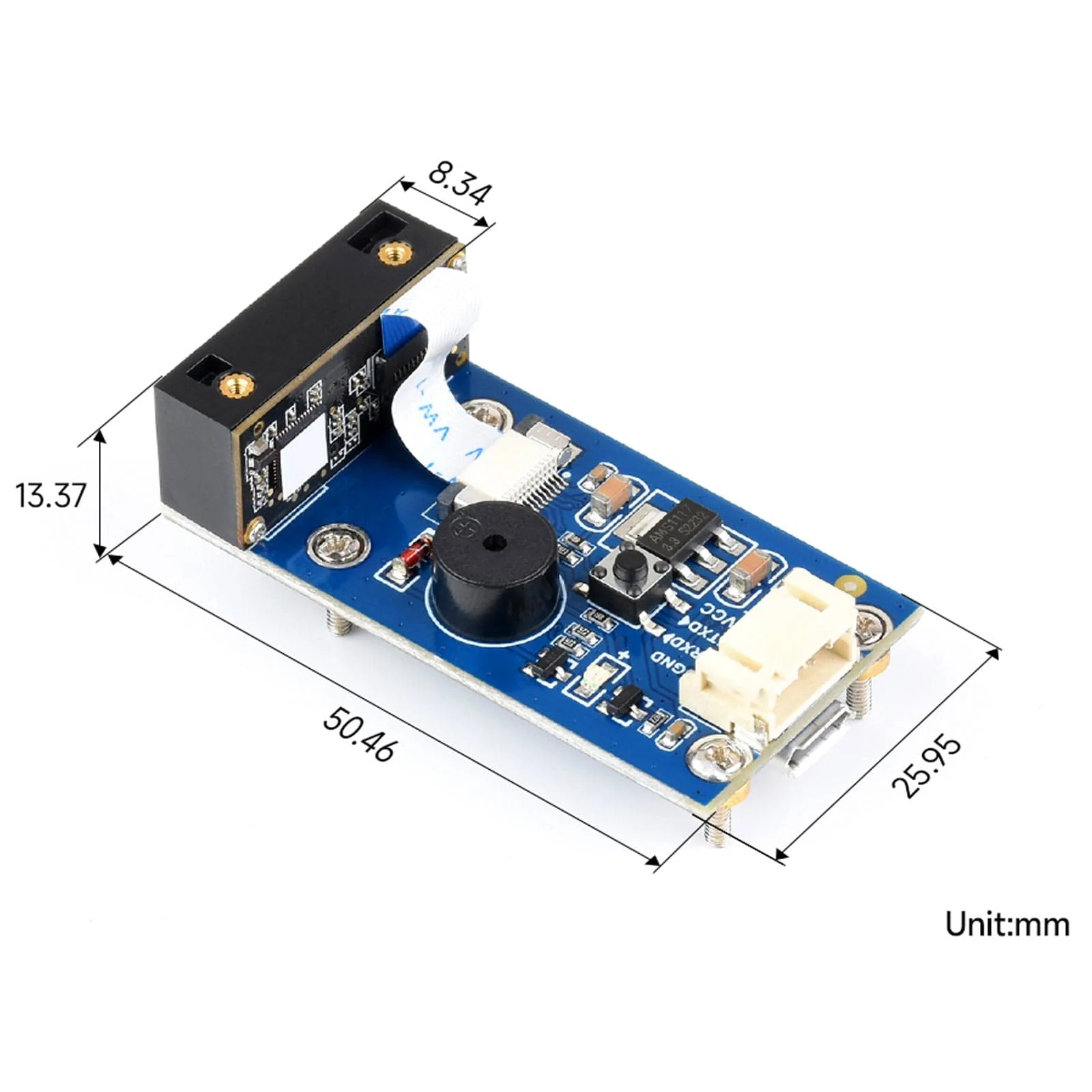

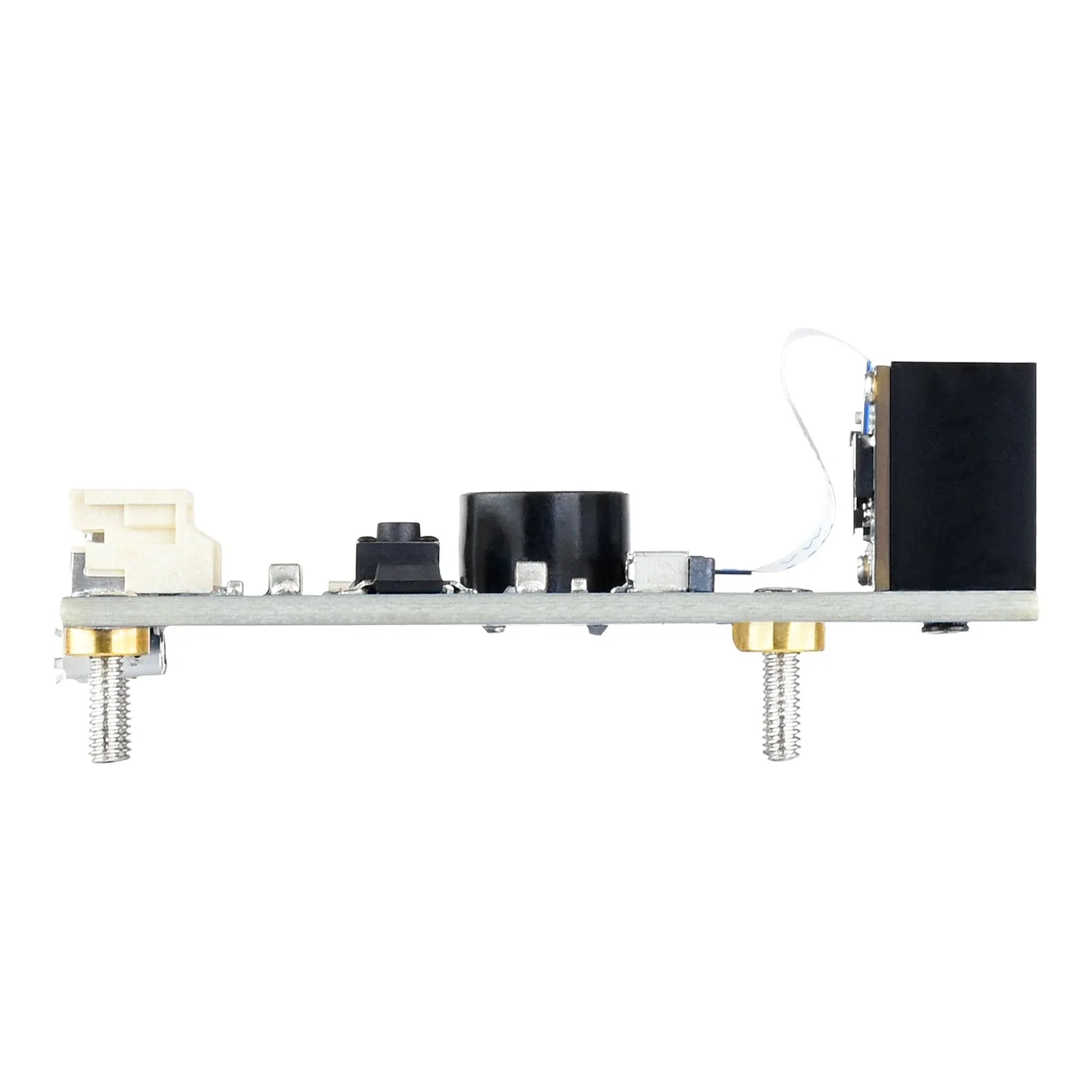

• Dimension: 53.3mm x 21.4mm

Resources

• Waveshare Wiki

Package Contents

• 1x - Barcode Scanner Module
• 1x - USB type A plug to micro B plug cable
• 1x - PH2.0 4-Pin
