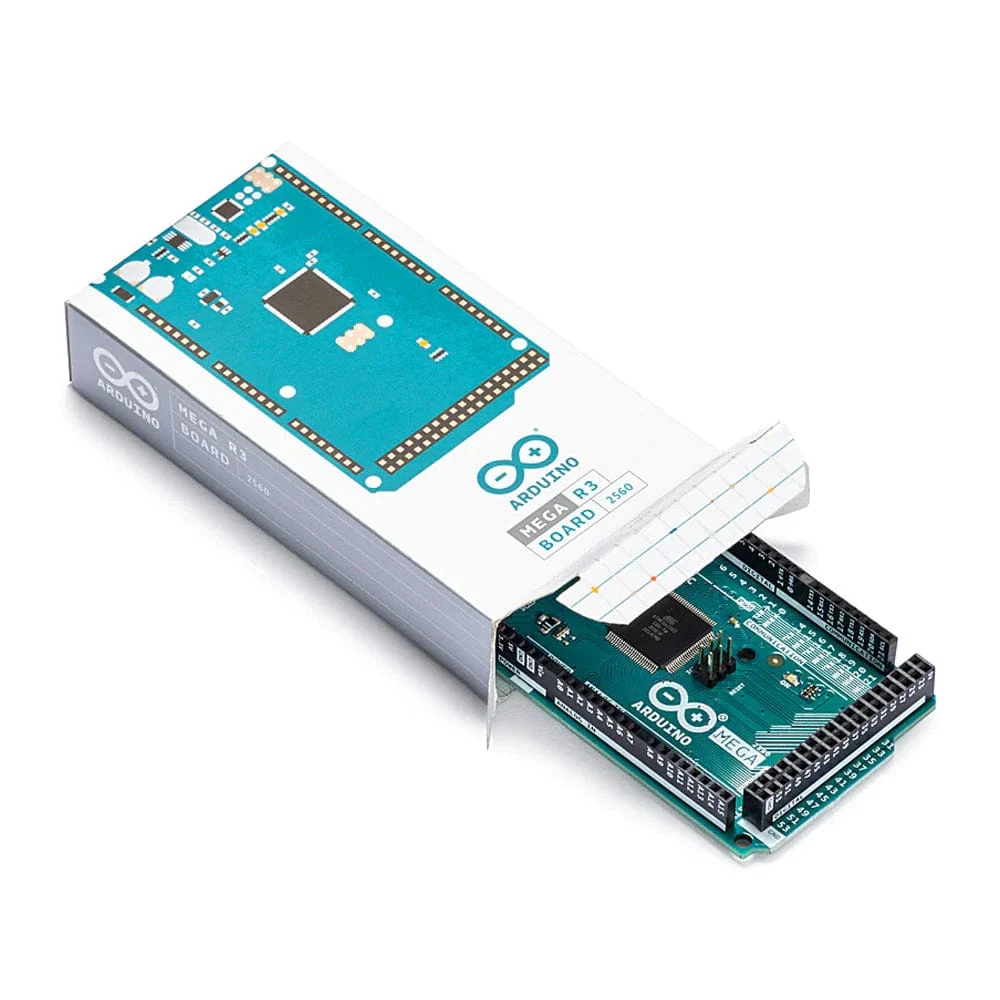

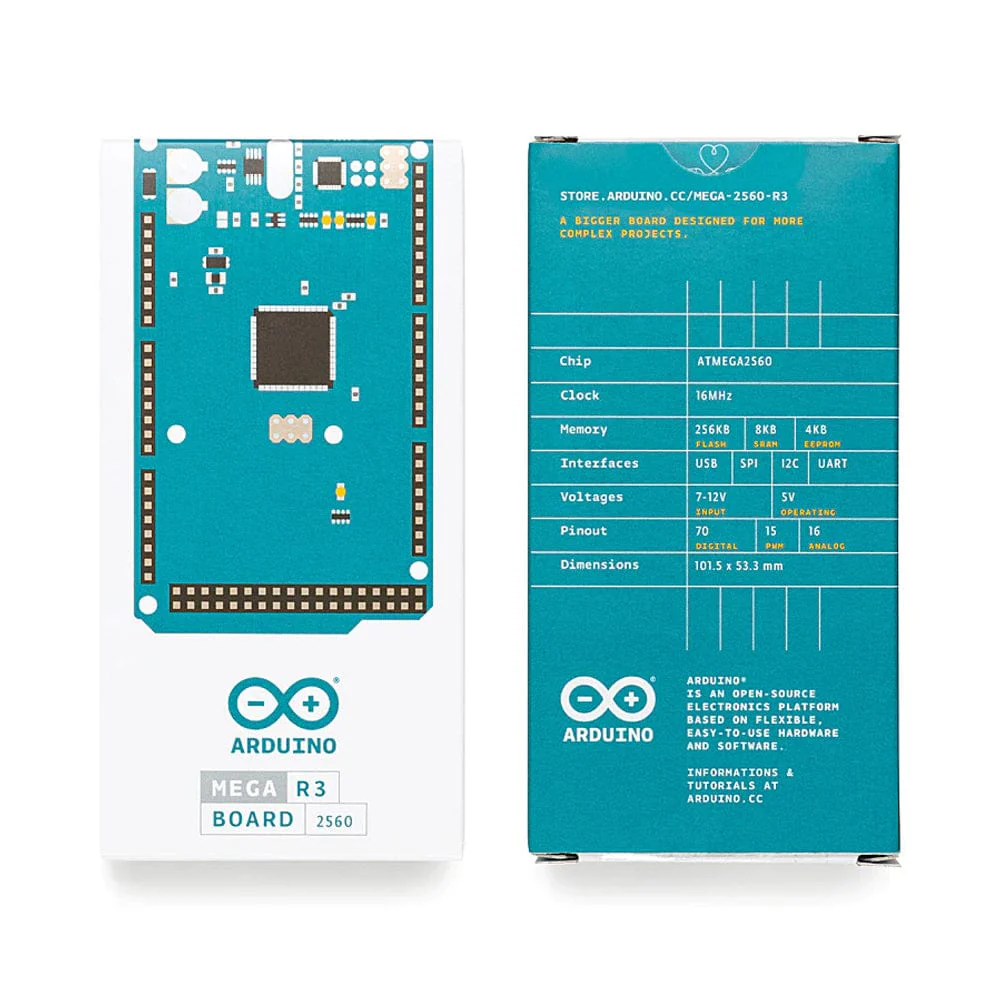

Arduino Mega 2560 Rev3

The 8-bit Arduino board with 54 digital pins, 16 analogue inputs and 4 serial ports.

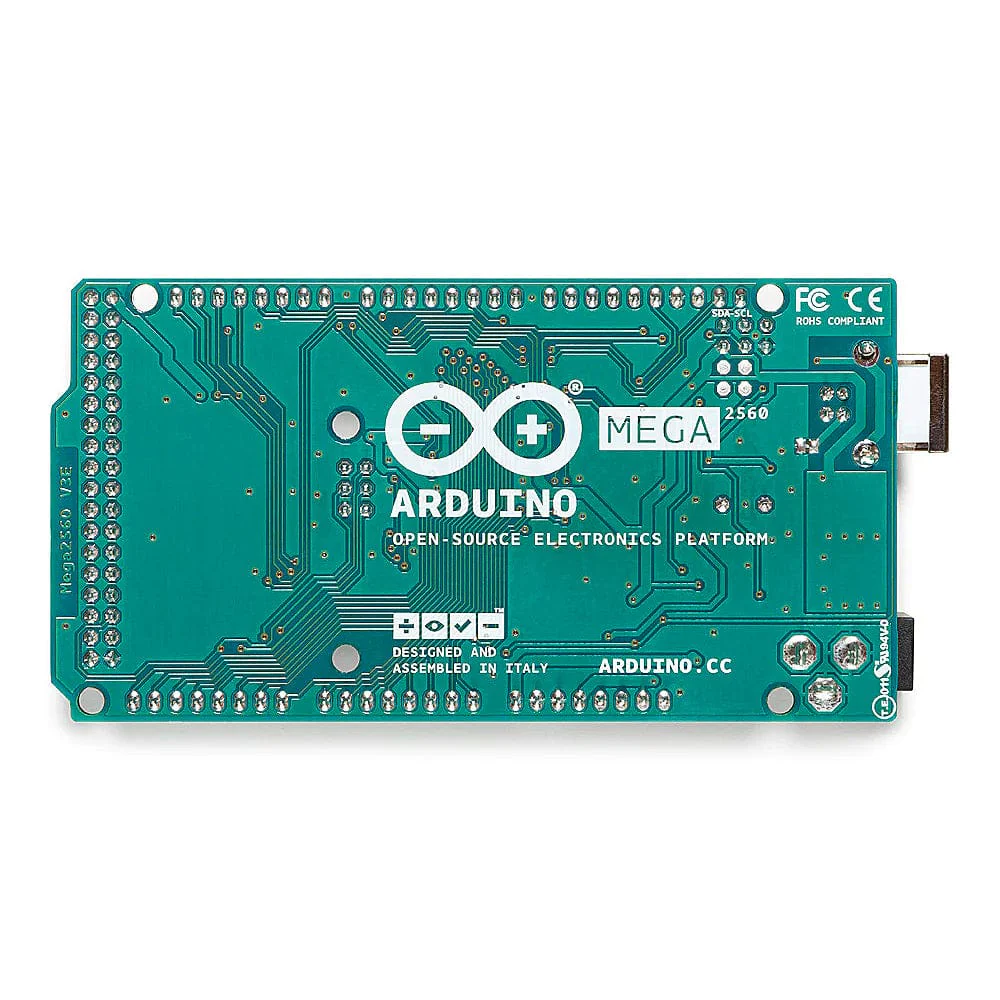

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analogue inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

Getting Started

Find inspiration for your projects with the Mega 2560 board from our tutorial platform Project Hub.

You can find in the Getting Started with Arduino MEGA2560 Rev 3 section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section, you can find examples from libraries and built-in sketches as well as other useful information to expand your knowledge of the Arduino hardware and software.

Resources

• Development Environments
  • Arduino IDE
  • Arduino CLI
  • Arduino Web Editor
  • Arduino IoT Cloud
• Getting Started
• Project Hub
• Arduino IDE Software
• Arduino Mega Pinout

Specifications

Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7-12V
Input Voltage (limit)	6-20V
Digital I/O Pins	54 (of which 15 provide PWM output)
Analog Input Pins	16
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	256 KB of which 8 KB used by the bootloader
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
LED_BUILTIN	13
Length	101.52 mm
Width	53.3 mm
Weight	37 g
