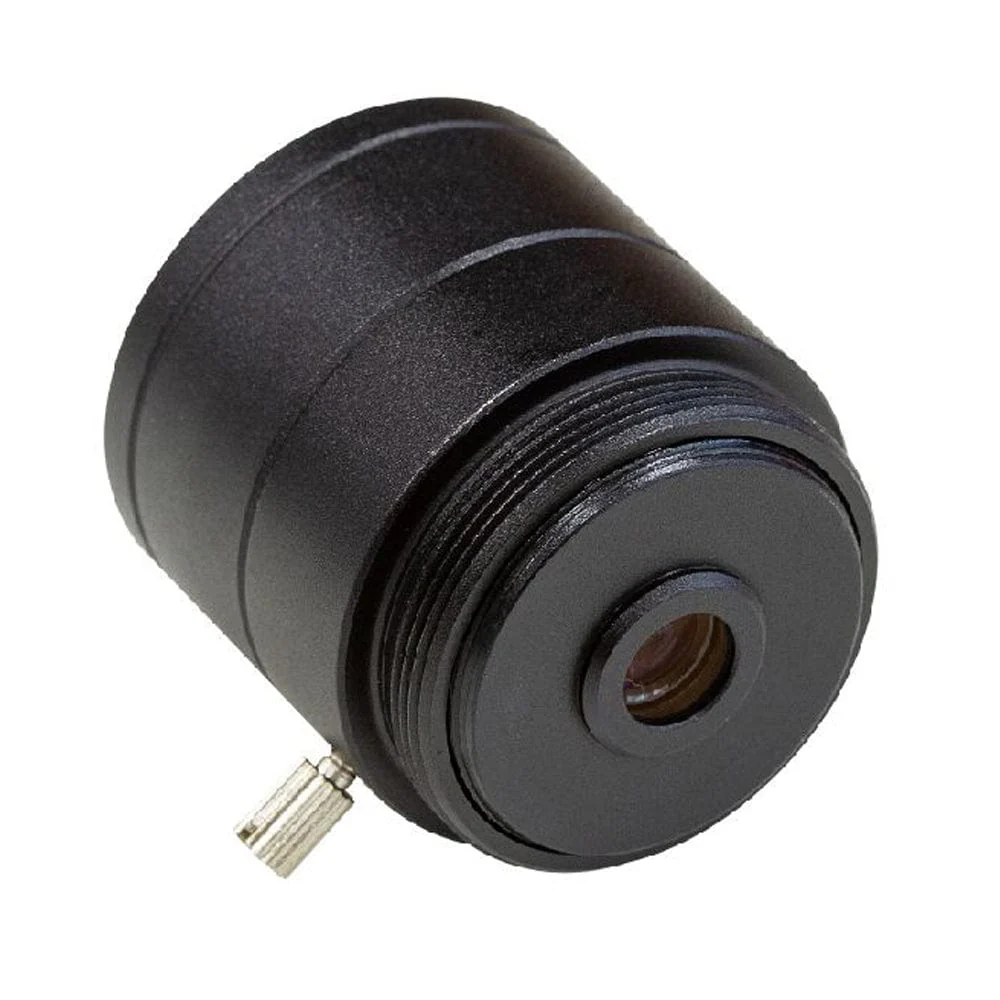

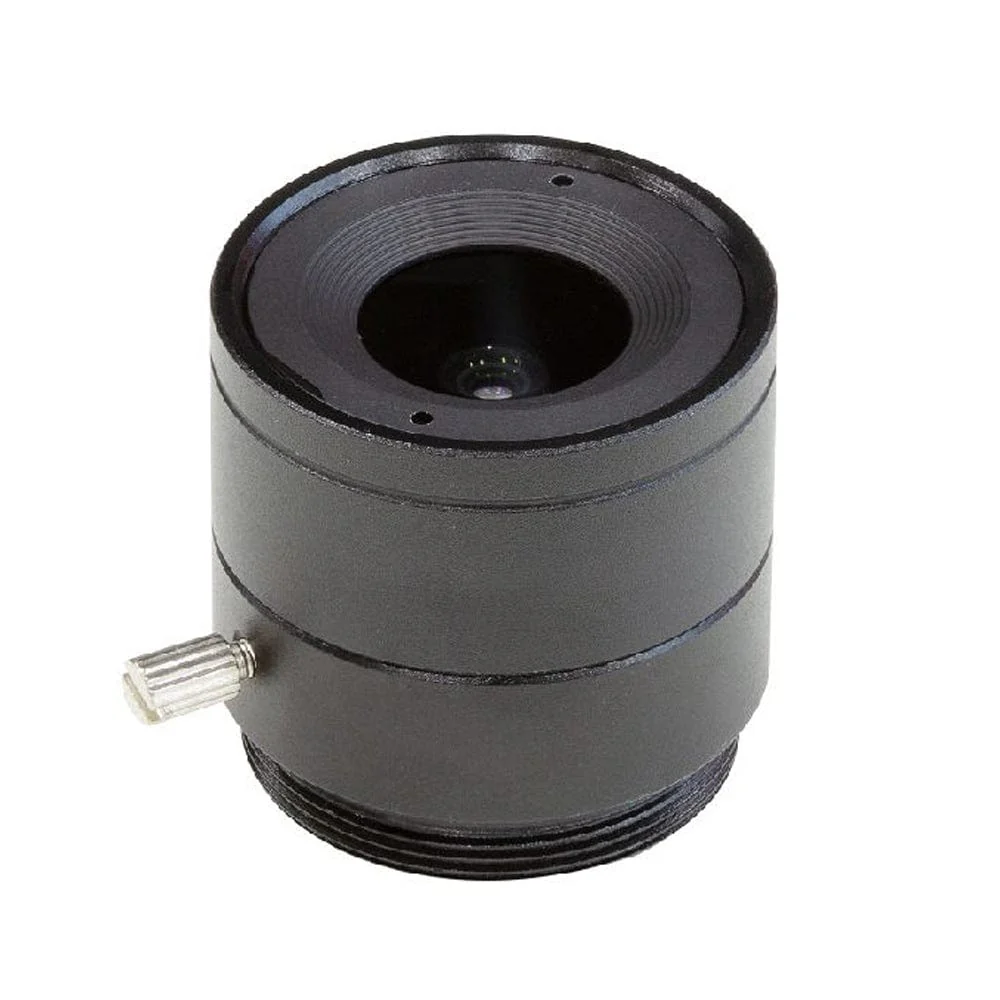

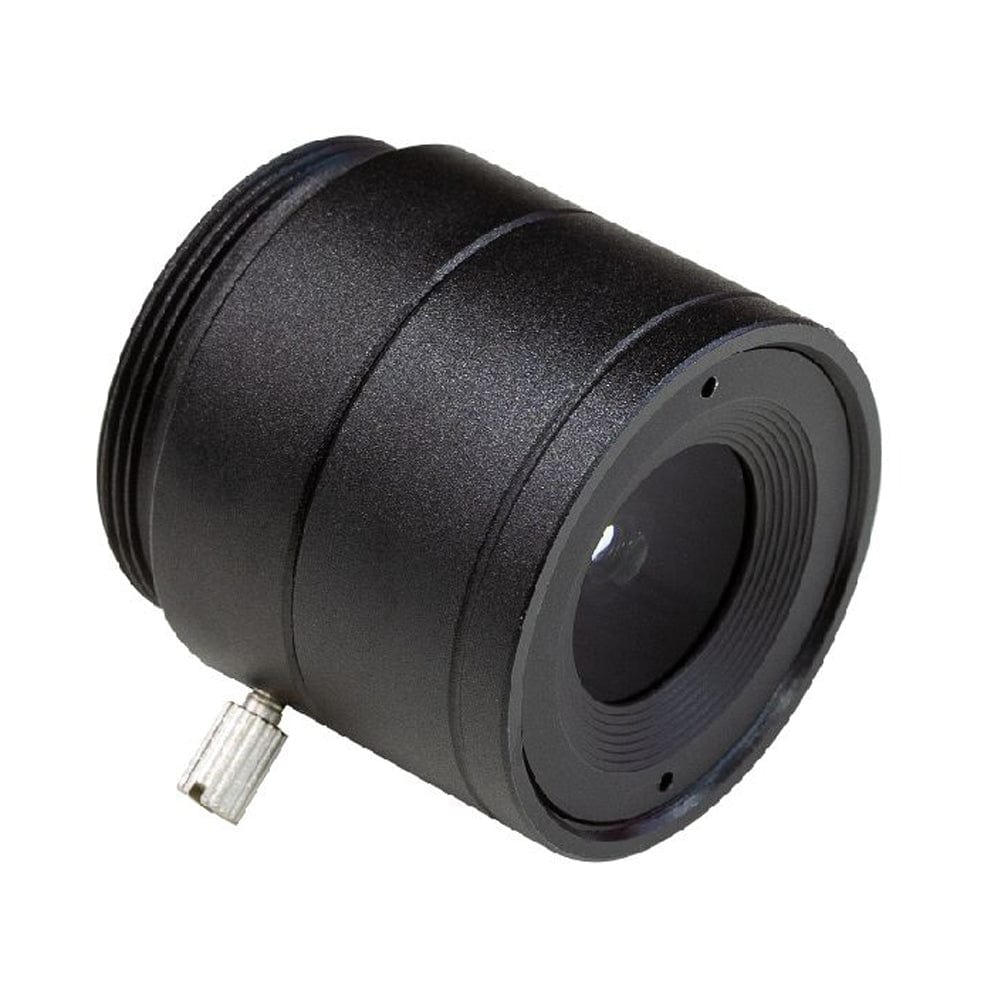

Arducam 1/2.5" CS Mount Focal Length 4mm Lens

This CS-mount lens comes with an adapter plate to allow you to convert your Arducam 8MP IMX219 camera module (and other similar IMX219 and OV5647 modules) from M12 to CS mount!

As the lens is CS-mount, it can also be used with other camera modules as long as their optical format is smaller than 1/2.5". It cannot be used with the Raspberry Pi HQ camera for this reason.

Features & Specifications

• NOT compatible with the Raspberry Pi HQ Cameras
• Optical Format: 1/2.5’’
• Focal Length: 4mm
• Back Focal Length(BFL): 7.68mm, Optical Distortion: <10%
• FOV on 1/2.5” sensor(D/H/V): 101°/82°/65°
• HFOV on 1/4” RPi Camera: 54°, F/NO: 1.4
• Mount: CS, MOD: 0.3m
• Dimension: Φ28x29.8mm

Package Contents

• 1x Arducam 1/2.5" CS Mount Focal Length 4mm Camera Lens LS-2718CS
• 1x Lens adapter plate
