Circuit Playground Classic

The Adafruit Circuit Playground Classic is an all-in-one learning board with built-in sensors, LEDs, and USB - perfect for exploring electronics and coding without soldering.

---

Would you like to learn electronics, with an all-in-one board that has sensors and LEDs built in? Circuit Playground is here - and it's the best way to practice programming on real hardware with no soldering or sewing required!

This is Adafruit's Classic version of Circuit Playground, which comes with an ATmega32u4. It's designed to be used with Arduino IDE and code.org CS Discoveries only. It even comes with Firmata already programmed in, so you can use it immediately with code.org Discoveries without any preparation or updates.

If you would like to use MakeCode or CircuitPython, check out Circuit Playground Express, which can be used with MakeCode, CircuitPython or Arduino.

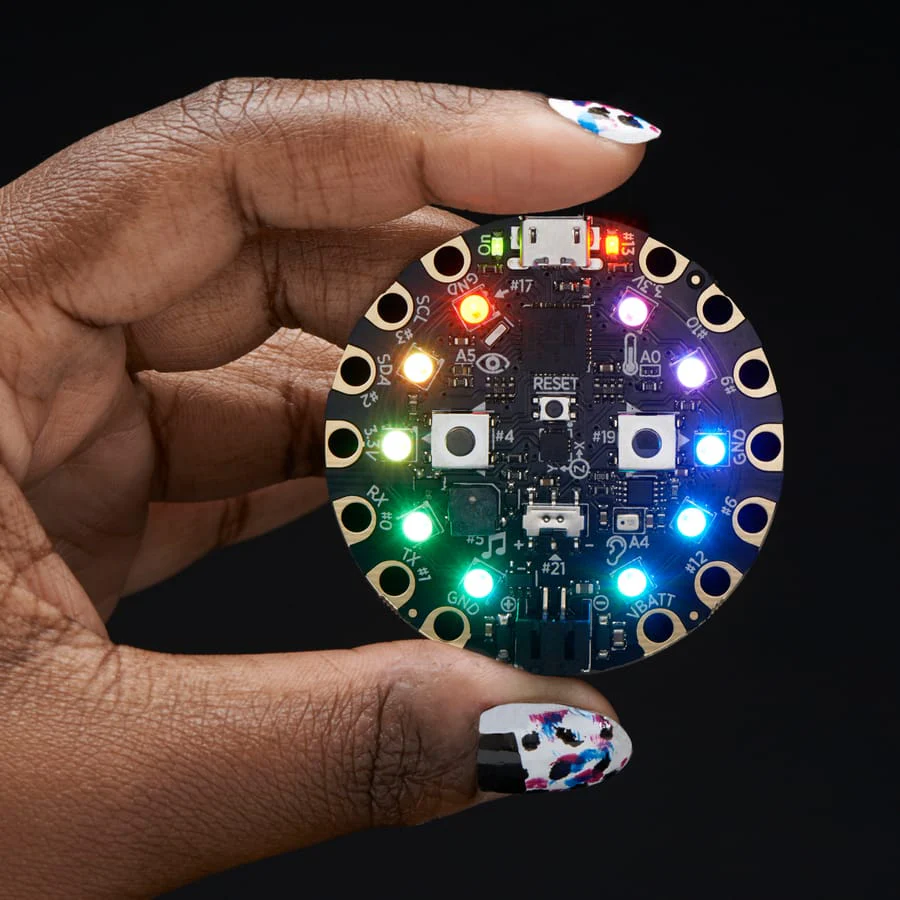

Circuit Playground features an ATmega32u4 processor, just like our popular Flora. The board's also round and has alligator-clip pads around it so you don't have to solder or sew to make it work. You can power it from USB, a AAA battery pack, or with a Lipoly battery (for advanced users). Just program your code into the board then take it on the go!

• ATmega32u4 Processor, running at 3.3V and 8MHz

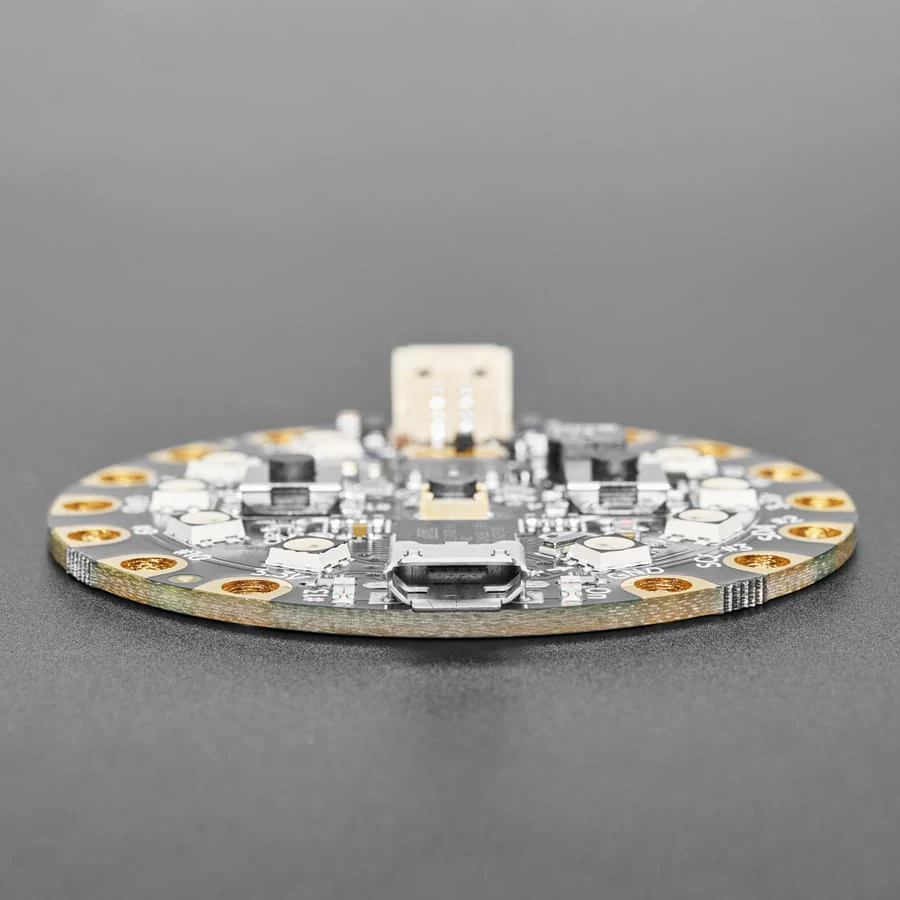

• MicroUSB port for programming and debugging with Arduino IDE
• USB port can act like serial port, keyboard, mouse, joystick or MIDI

Circuit Playground has built-in USB support. Built in USB means you plug it in to program it and it just shows up.  All you really need is a Micro-B data/sync USB cable - not included! With the new 1.6.4+ Arduino IDE, it takes only a few seconds to add support. The Circuit Playground has USB HID support, so it can act like a mouse or keyboard and attach directly to computers.

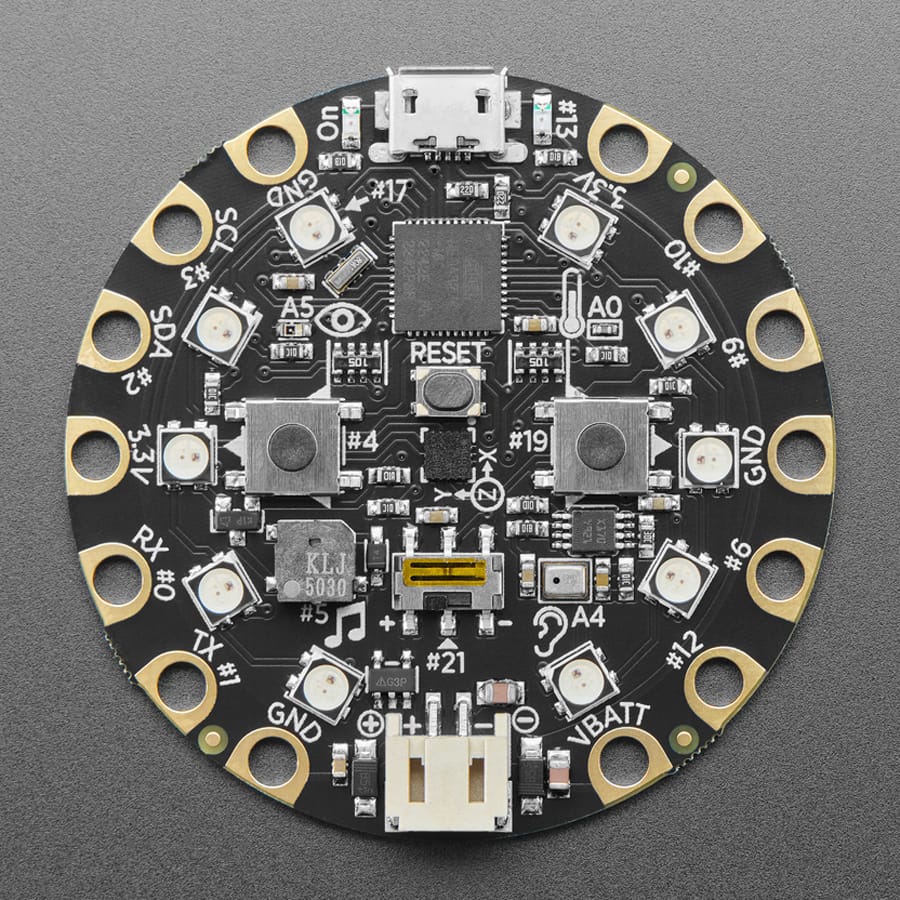

Here's some of the great goodies baked in:

• 10x mini NeoPixels, each one can display any colour
• 1x Motion sensor (LIS3DH triple-axis accelerometer with tap detection, free-fall detection)
• 1x Temperature sensor (thermistor)
• 1x Light sensor (phototransistor)
• 1x Sound sensor (MEMS microphone)
• 1x Mini speaker (magnetic buzzer)
• 2x Push buttons, left and right
• 1x Slide switch
• 8x alligator-clip friendly input/output pins
• Includes I2C, UART, and 4 pins that can do analogue inputs/PWM output
• All 8 pads can act as capacitive touch inputs
• Green "ON" LED so you know its powered
• Red "#13" LED for basic blinking
• Reset button

Features

• ATmega32u4 processor running at 3.3V and 8MHz
• Compatible with Arduino IDE and Code.org CS Discoveries
• Pre-programmed with Firmata for immediate use with Code.org
• 10 addressable NeoPixel LEDs with full colour control
• Built-in sensors: motion (accelerometer with tap/free-fall detection), temperature, light, and sound
• Mini speaker (magnetic buzzer) for audio feedback
• 2 push buttons and 1 slide switch
• 8 alligator-clip friendly I/O pads with capacitive touch support
• Supports I2C, UART, analogue inputs, and PWM output
• Micro-USB port for programming and debugging
• USB HID support functions as keyboard, mouse, joystick, or MIDI device

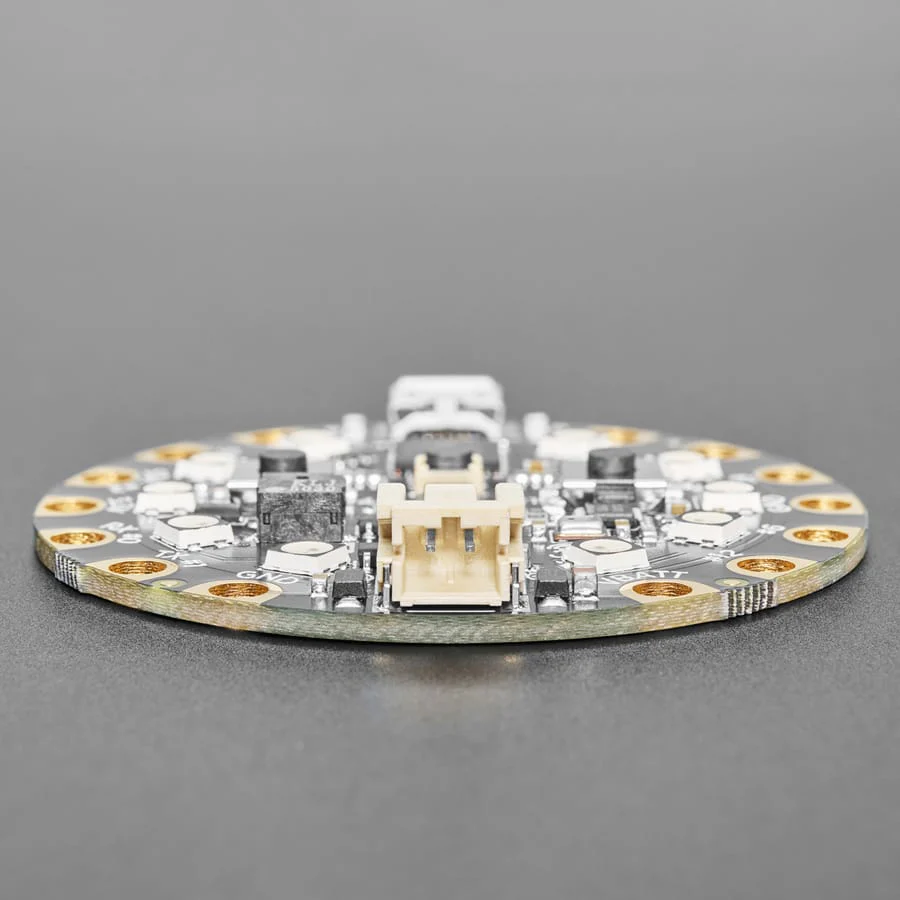

• Power via USB, AAA battery pack, or LiPoly battery
• No soldering or sewing required
• Circular board design with alligator-clip pads
• Built-in power and status LEDs

Specifications

• Outer Diameter: 50.6mm
• Weight: 8.5g

Revision History

• As of June 30, 2017, these now come pre-programmed with Firmata so they can be used with code.org CS curriculum immediately!

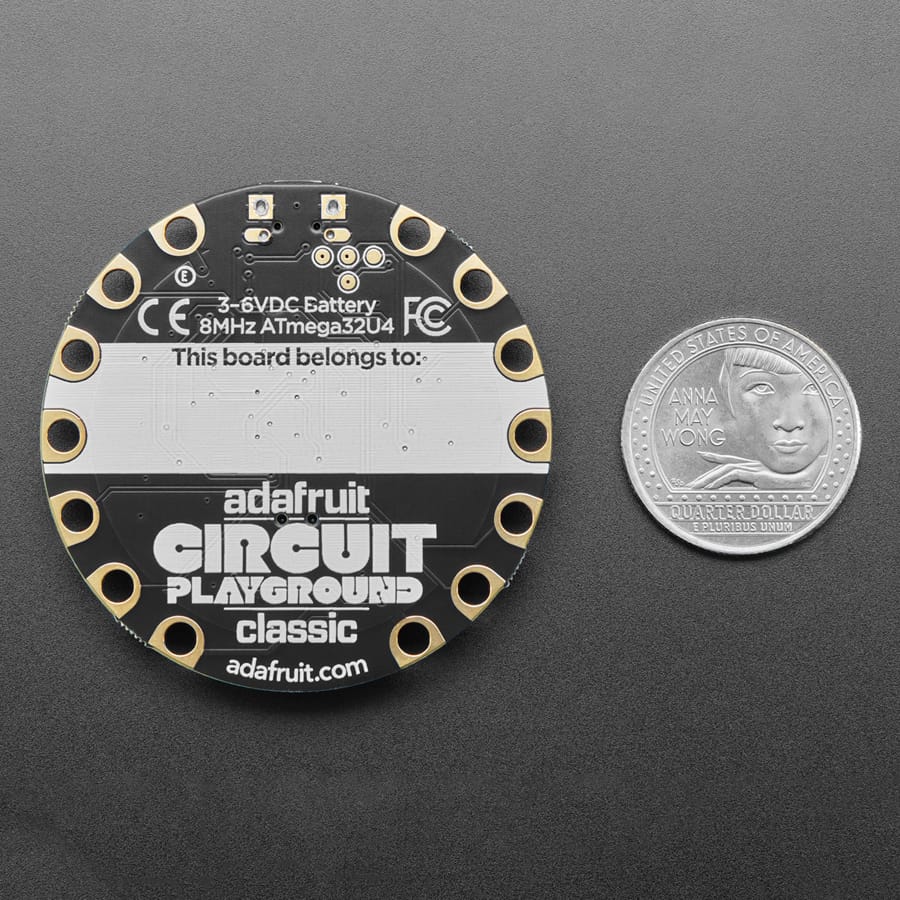

• As of August 3, 2017, we now have a new silkscreen back that says "Circuit Playground Classic". Other than that they are identical to what we have been selling historically

Resources

• Primary Guide
• Datasheets

Package Contents

• 1x Circuit Playground Classic
