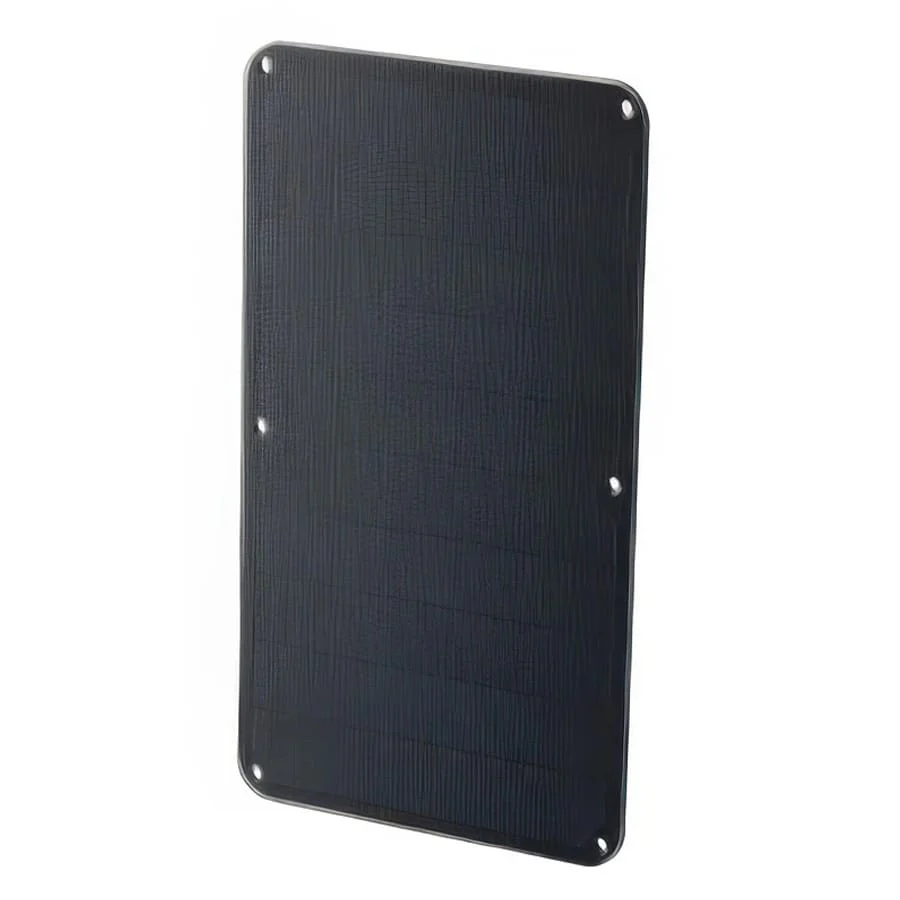

Voltaic P105 - 6V 5W Solar Panel (ETFE)

The Voltaic P105 6V 5W Solar Panel delivers durable, high-performance solar power in a lightweight form, ideal for IoT applications with strict size, reliability, and longevity requirements.

---

The Voltaic P105 is a 223x148mm high-performance 6V 5W ETFE solar panel designed for industrial IoT applications, offering a lightweight, efficient, and cost-effective solution for outdoor power.

SMT ETFE panels are well suited to applications where space or weight is limited, long lifetimes are required, and strict quality and dimensional tolerances must be maintained.

Voltaic ETFE panels are manufactured using a strictly sourced and qualified material stack. They are third-party tested for the equivalent of over 10 years of UV exposure, along with thermal cycling, vibration stress, and resistance to chemicals and oils.

They are also used in a range of ATEX applications, demonstrating suitability for demanding environments.

Panel Accessories

• Medium Panel Bracket - provides a lightweight, durable way to mount small solar panels to poles or pipes
• ETFE Panel Screw & Washer Set - provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to compatible mounting brackets
• Corner Mounts - make it easy to securely attach solar panels to straps or surfaces
• Magnet Mounts - provides a simple, drill-free way to attach solar panels to metal surfaces

• ABS Plastic Post Nuts - lightweight mounting nuts designed to securely attach Voltaic solar panels to brackets, corner mounts, and other hardware
• Stainless Steel Post Nuts - provides a stronger, more secure mounting solution for Voltaic solar panels
• Cable Glands - creates a waterproof seal between your solar panel and enclosure, protecting internal electronics while allowing secure cable routing
• Extension and Splitter cables - visit our Voltaic section for a range of cable accessories

Features

• IPX7 waterproof rated
• 10+ years UV exposure testing
• Third-party agency qualification
• 21.9% high-efficiency Sun power solar cells
• Black matte appearance
• Low friction, anti-dust surface

Specifications

Output

• Open Circuit Voltage: 7.13V
• Peak Voltage: 6.12V
• Peak Current: 940mA
• Peak Power: 5.75W
• Power Tolerance: +/-10%
• For maximum power output, orient the panel towards the sun

Output cable

• Cable Length: 50cm
• Cable Colour: Red PU Coated
• Plug: Waterproof Male 3.5x1.1mm
• Extend the cable length using 1 foot, 4 foot, and 10 foot extension cables

• Solder directly to a PCB using extension with exposed leads

Mechanical Characteristics

• Dimensions: 223 x 148 x 3.6 mm
• Weight: 188g
• Standard Tolerance: ± 0.5 mm
• Compliance: RoHS and REACH
• Testing: relevant sections of IEC 61215, SAE
  J1455, and IEC 60529
• Mounting: 6 x Thru-holes
• Operating Temperature: −40°C to 85°C
• Cable: 3.5x1.1mm jack


Construction

• Matte ETFE coating
• 2.0mm FR4

Electrical Characteristics

Symbol	Parameter	Nominal	Expected*	Unit
WP	Max power (mpp)	5.51	4.61	W
VP	Voltage @ mpp	5.21	4.69	V
IP	Current @ mpp	1.06	0.98	A
VOC	Open-circuit voltage	6.61	5.94	V
ISC	Short-circuit current	0.95	1.06	A
η	Cell efficiency	21.9	-	%

*Expected values are adjusted for real-world losses that include cutting of cells, imperfect transmissivity of the EVA and ETFE encapsulation layers, and the tolerance of the lowest performing cell piece in the series

Resources

• Datasheet
• Technical drawing
• STEP Model

Package Contents

• 1x Voltaic P105 6V 5W Solar Panel - ETFE
