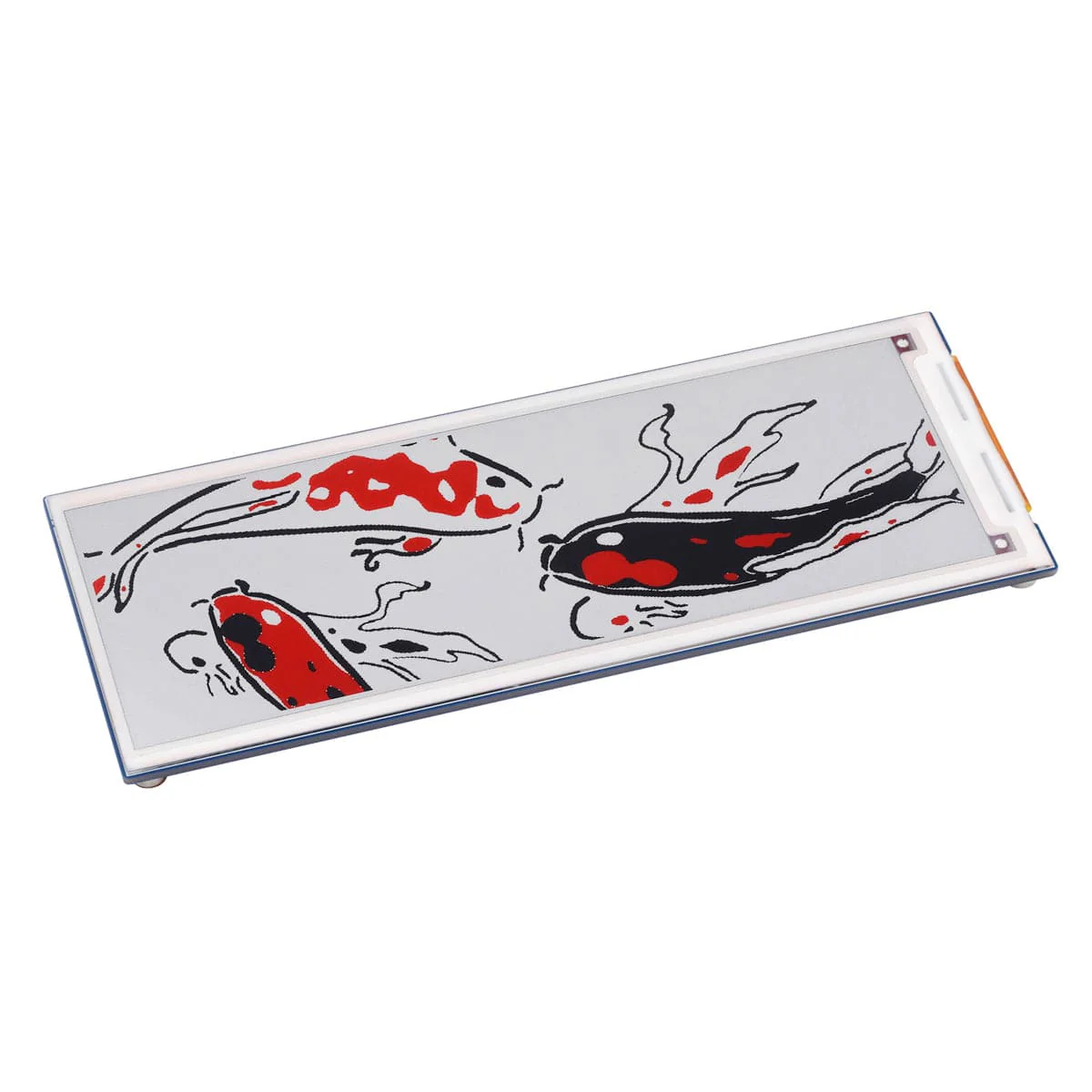

5.79" ePaper Display Module - Red/Black/White (792x272)

This 5.79" E-Paper module is a colourful e-ink display with a resolution of 792 x 272 pixels and supports red, black, and white colours. With a viewing angle exceeding 170°, this display provides clear visibility from nearly any direction. It operates without a backlight, maintaining its last displayed content for extended periods even when powered down, making it ideal for power-sensitive projects. This module has ultra-low power consumption, only requiring power during the refresh process. The SPI interface provides easy connectivity with various controller boards, including Raspberry Pi, Jetson Series, Arduino, and STM32, enhancing its versatility for different projects.

Note: Raspberry Pi 5 is NOT included

Features

• No backlight, keeps displaying last content for a long time even when powered down
• Ultra-low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)

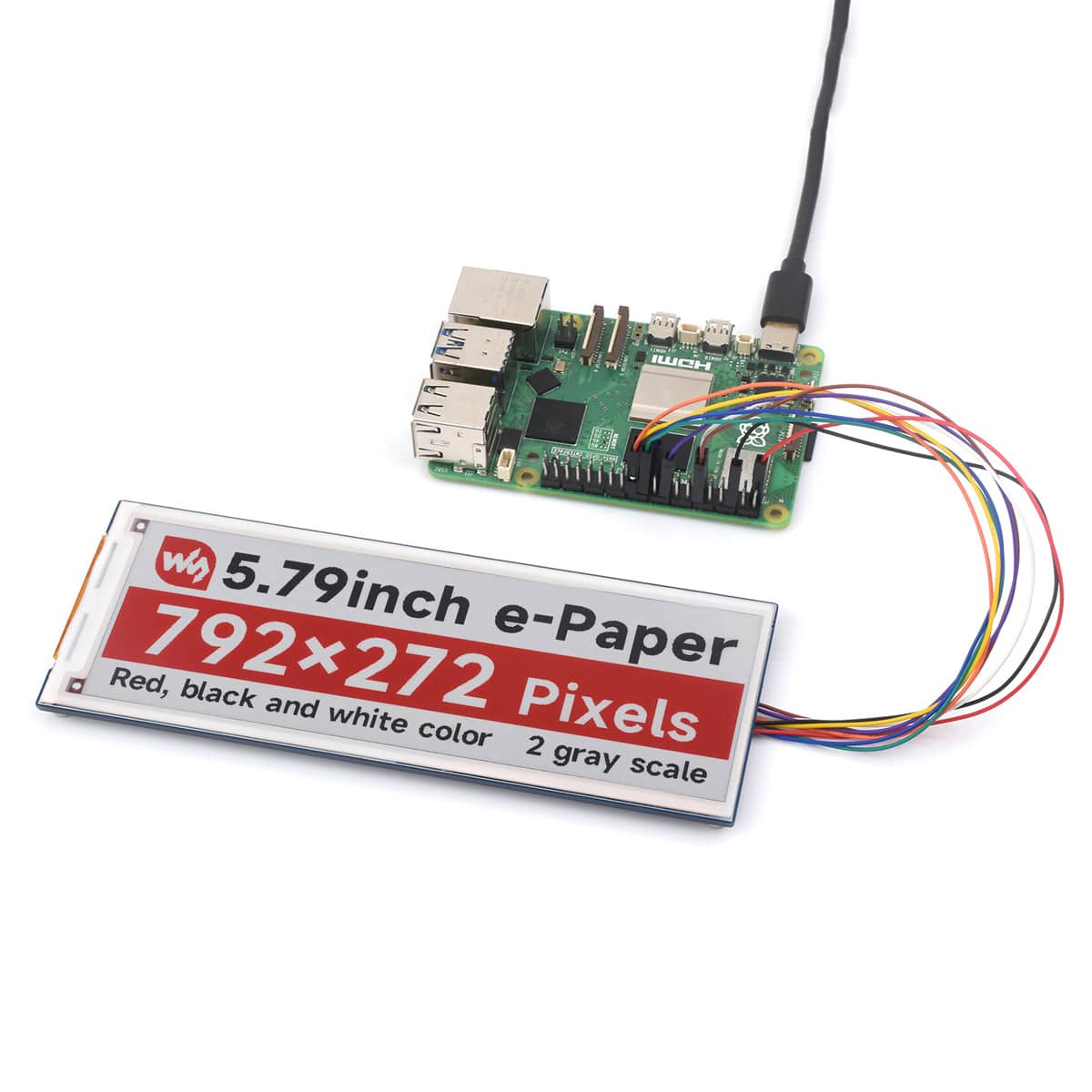

Connection Example - Raspberry Pi 5

Specifications

Operating Voltage	3.3V/5V
Interface	3-wire SPI, 4-wire SPI

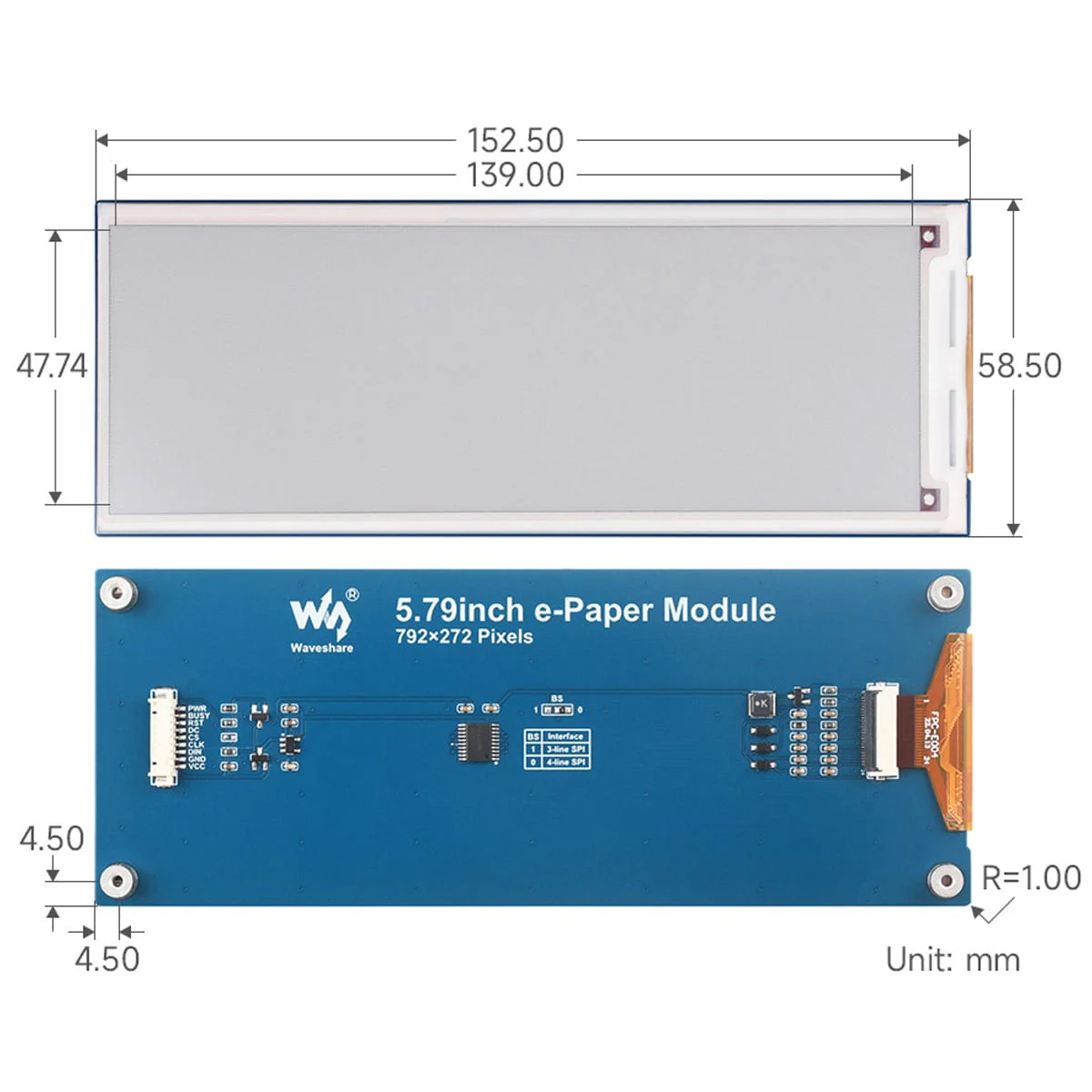

Outline Dimensions	152.50 x 58.50mm
Display Size	139.00 x 47.74mm
Dot Pitch	0.1755 x 0.1755mm

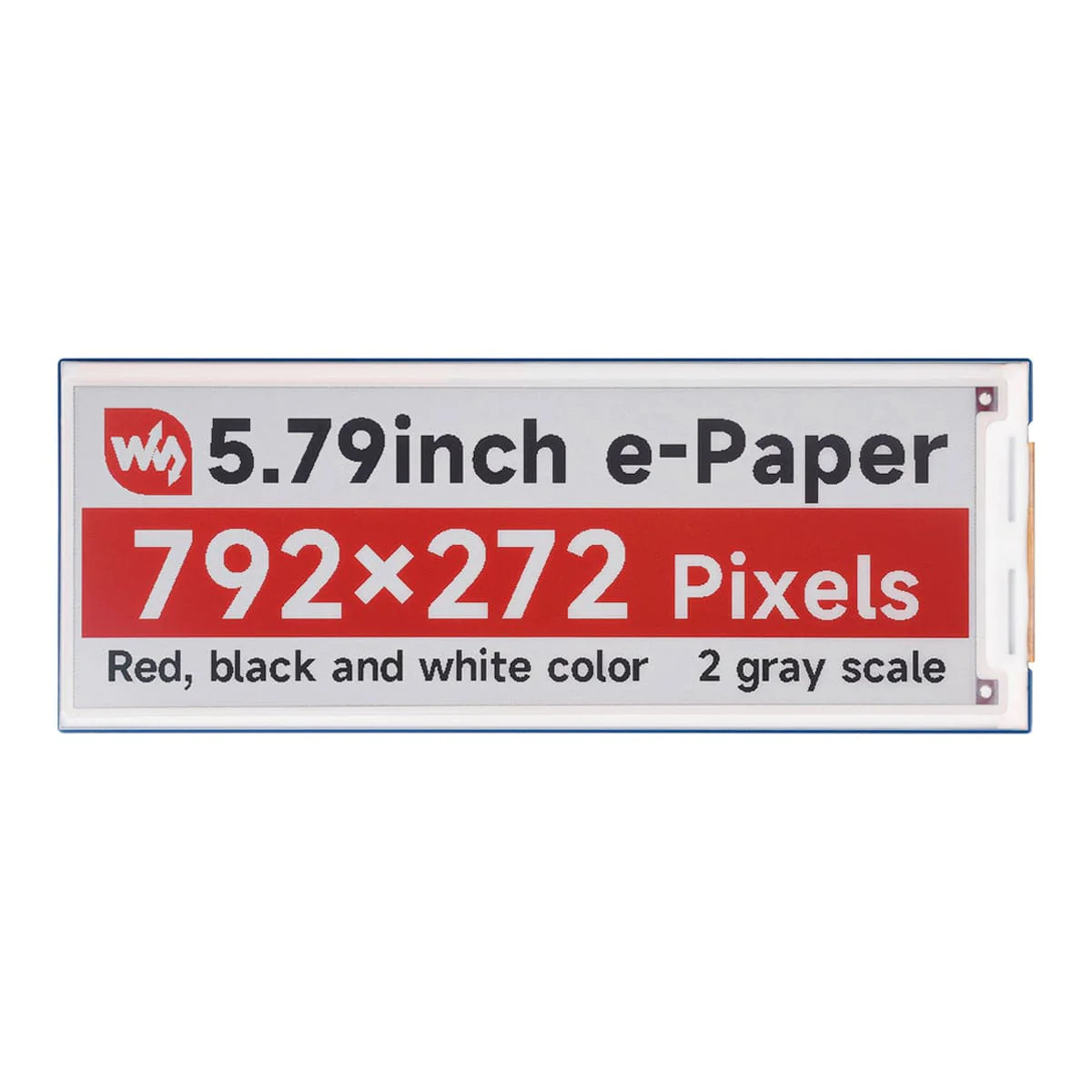

Resolution	792 x 272 pixels
Display Colour	Red/Black/White
Grey Scale	2
Full Refresh Time	24s
Refresh Power	<50mW
Standby Current	<0.01uA (almost none)
Viewing Angle	>170°

Resources

• Product Wiki
• Manual
• Schematics

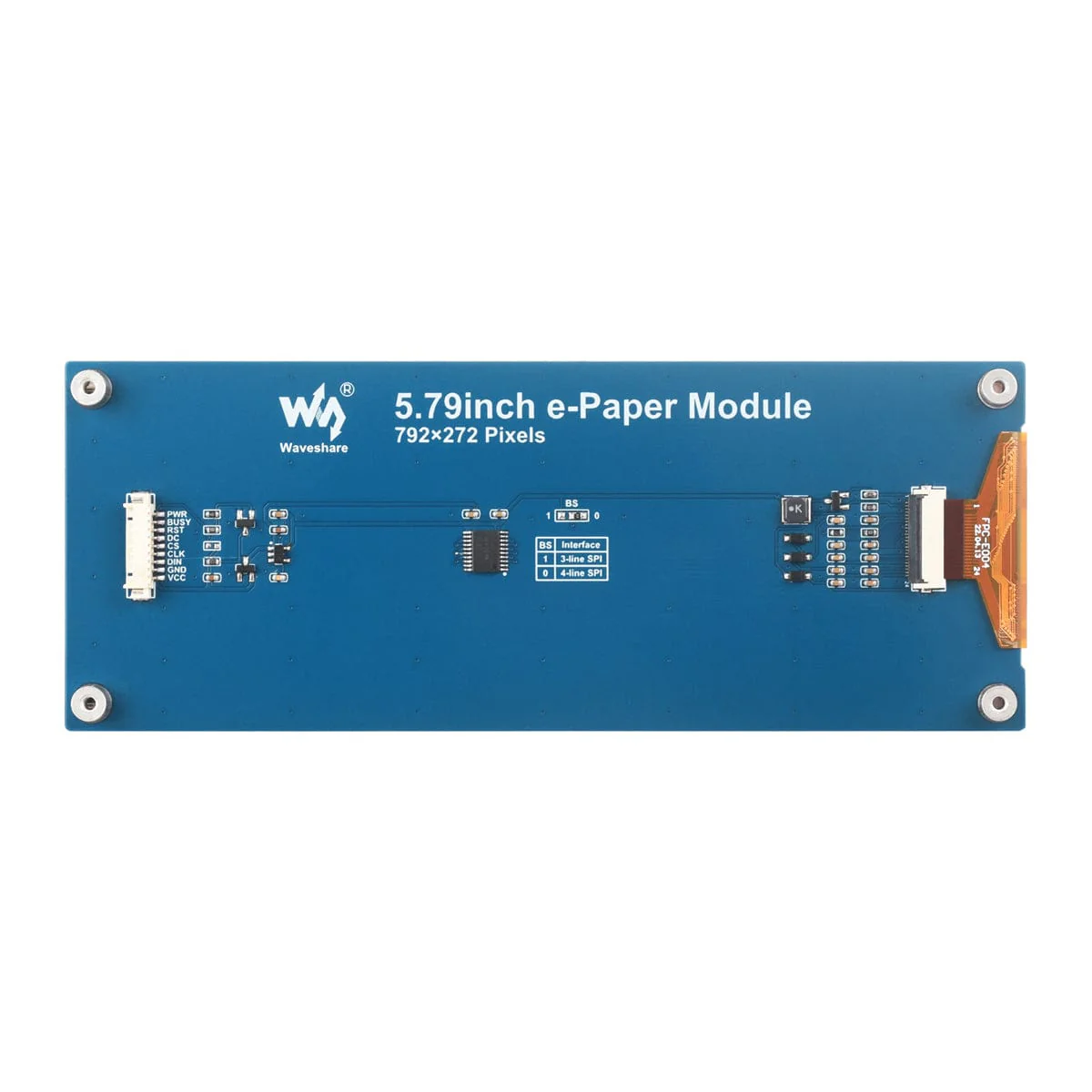

Pinout

PWR	Power on/off control
BUSY	Busy status output pin
RST	External reset, low active
DC	Data/Command selection (high for data, low for command)
CS	SPI chip selection, low active
CLK	SPI SCK pin
DIN	SPI MOSI pin
GND	Ground
VCC	Power (3.3V / 5V input)

Package Contents

• 1x 5.79" e-Paper Module (B)
• 1x GH1.25 9-pin cable 20cm
