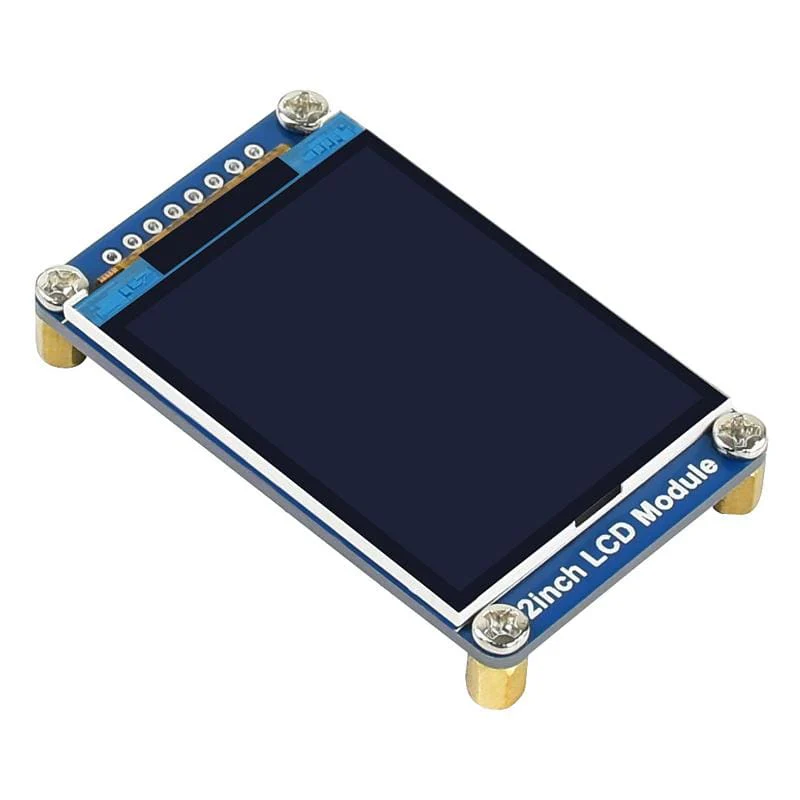

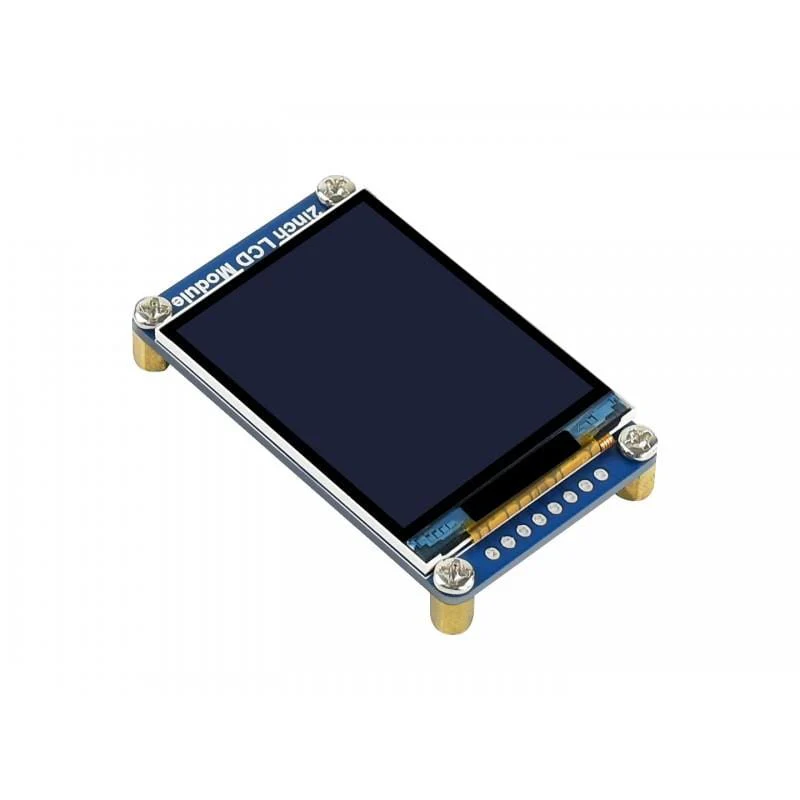

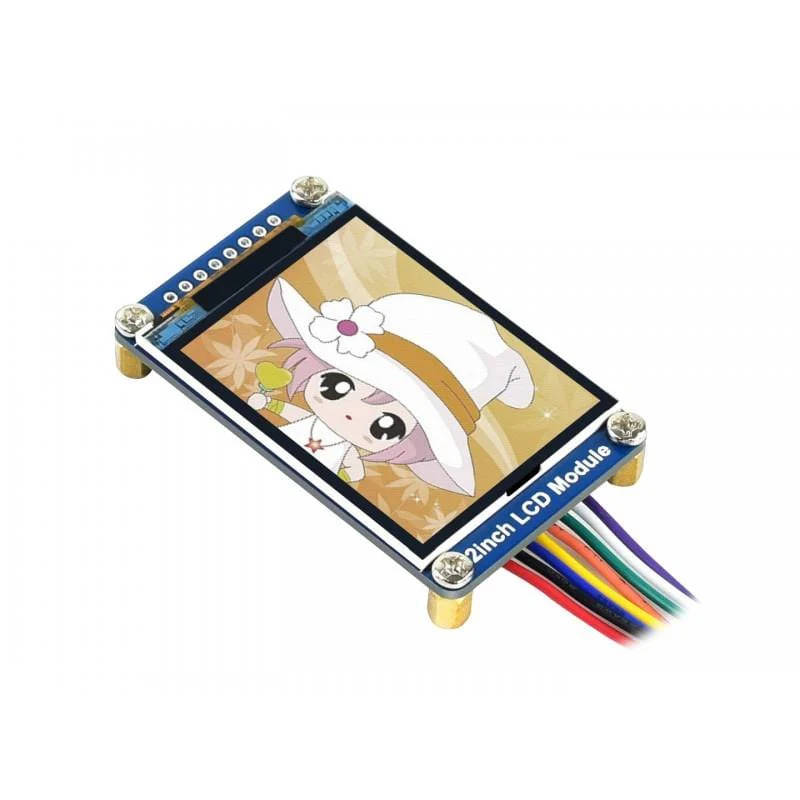

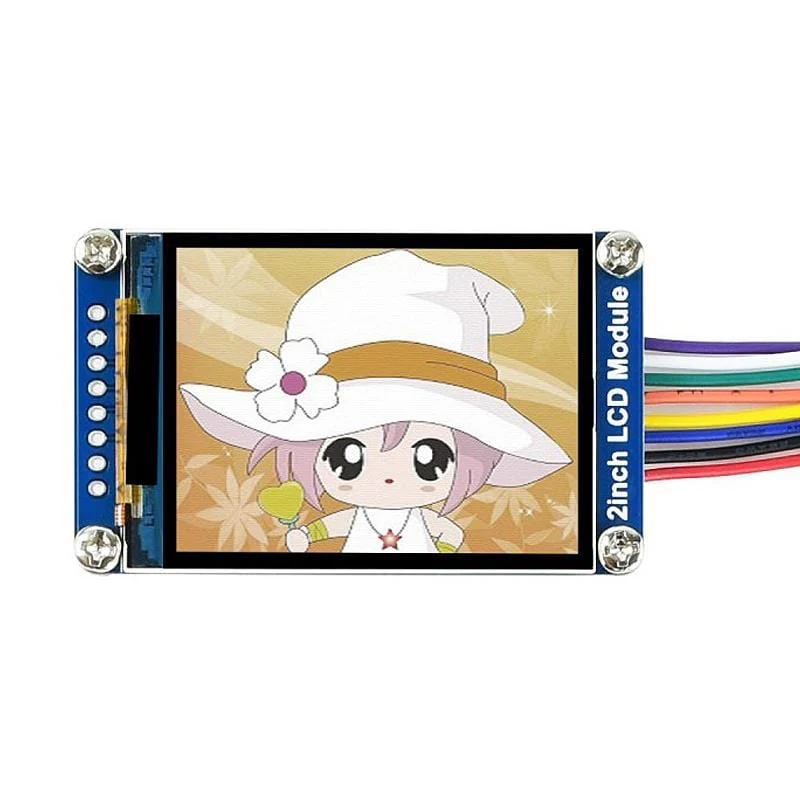

2" IPS LCD Display Module (240x320)

This 2" IPS LCD module from Waveshare is a great way to add a mini high-quality display to your project.

The display has a 240x320 resolution and offers 262K RGB colours via its IPS display. The module is controlled via a simple SPI thanks to the embedded ST7789 driver.

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

Features

• 2" LCD Display
• 240×320 resolution
• 262K RGB colours
• Clear and colourful display
• SPI interface minimizes required IO pins
• Supports controller boards such as Raspberry Pi and Arduino
• Comes with online development resources (examples for Raspberry Pi/Arduino)

Specifications

• Operating voltage: 3.3V
• Interface: SPI
• LCD type: IPS
• Controller: ST7789
• Resolution: 240x320
• Backlight: LED

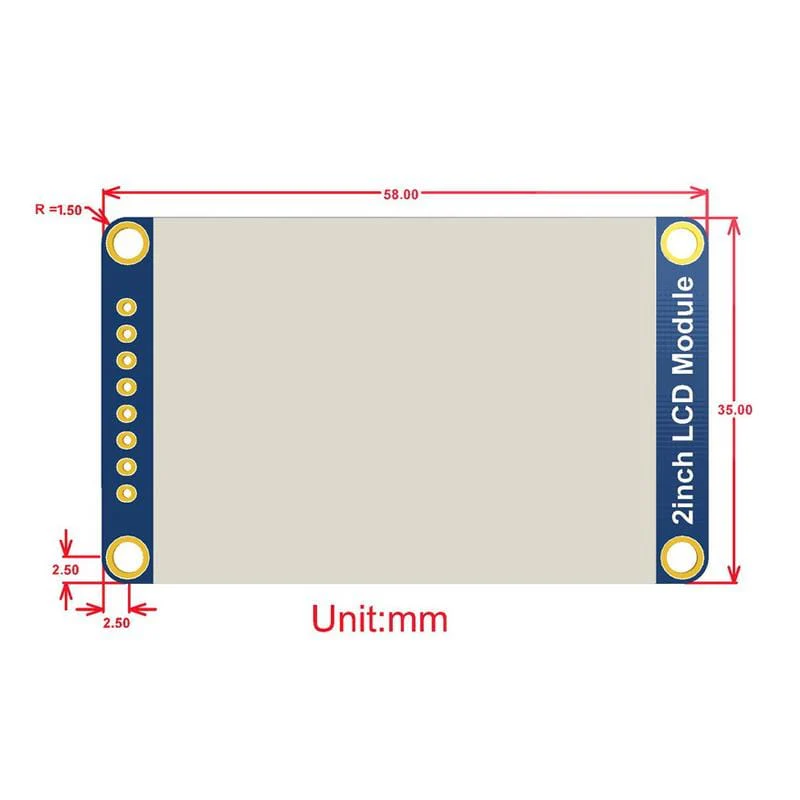

• Dimensions: 58.00 × 35.00mm

Package Contents

• 1x 2" LCD Module

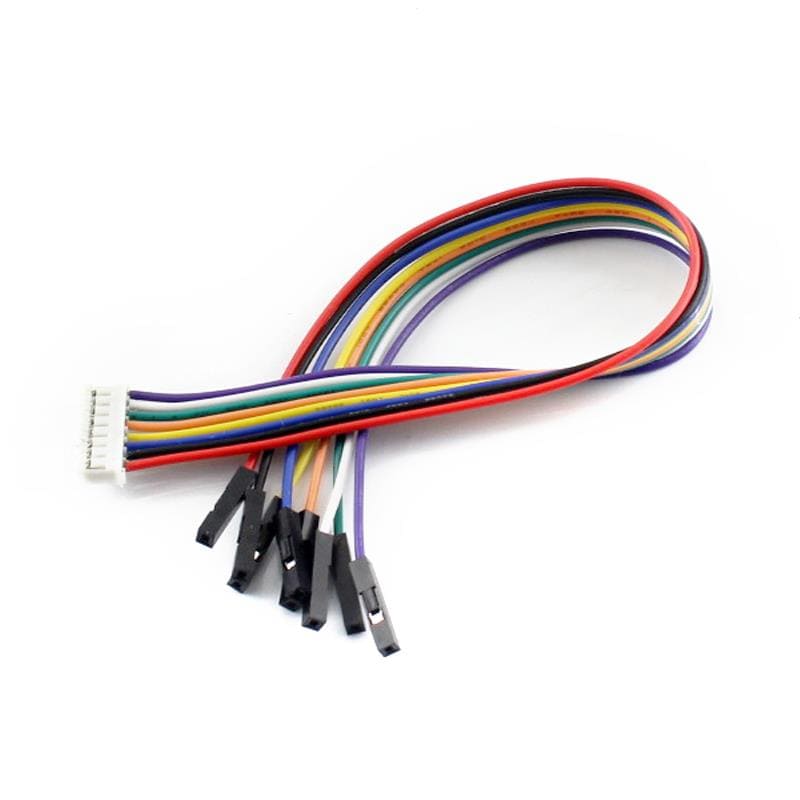

• 1x PH2.0 8-pin 20cm cable

Resources

• Product Wiki

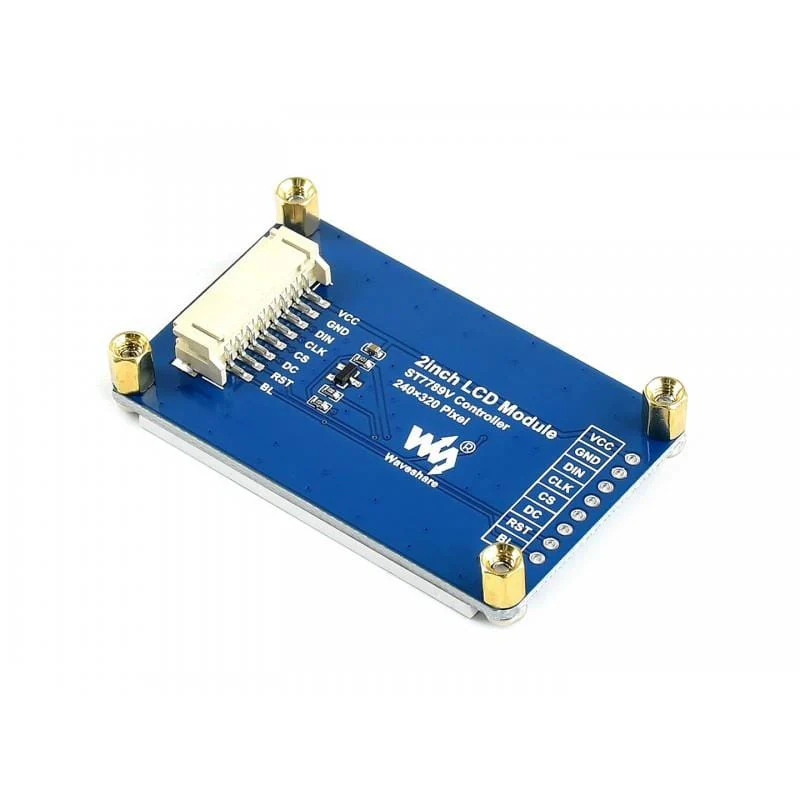

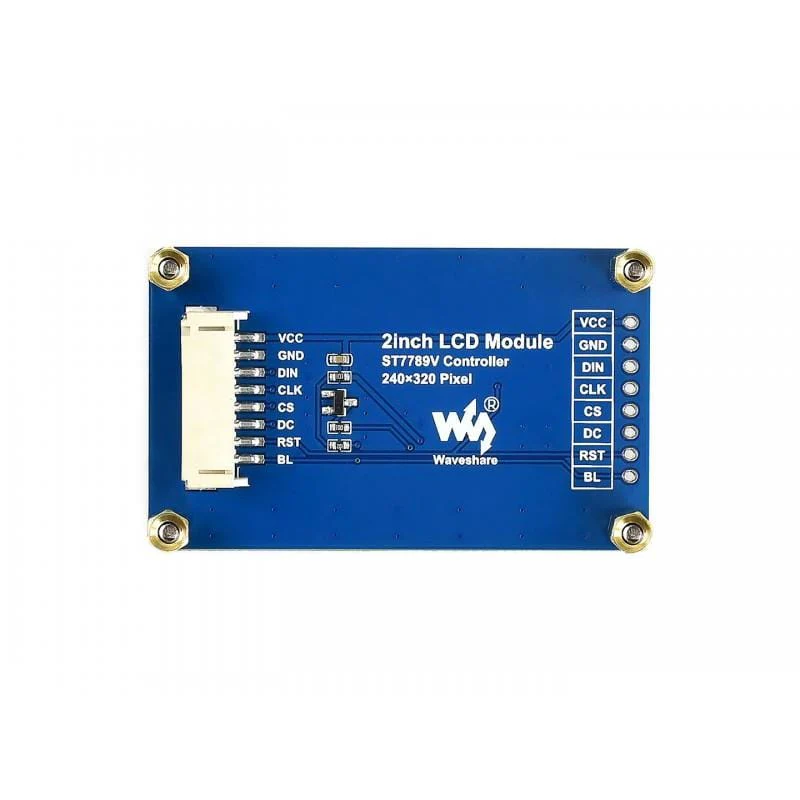

Pinout

VCC	Power (3.3V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight
