2.23" OLED Display Module for Raspberry Pi Pico

This 2.23" OLED display for the Raspberry Pi Pico is a great way to display data from your project whilst keeping everything compact.

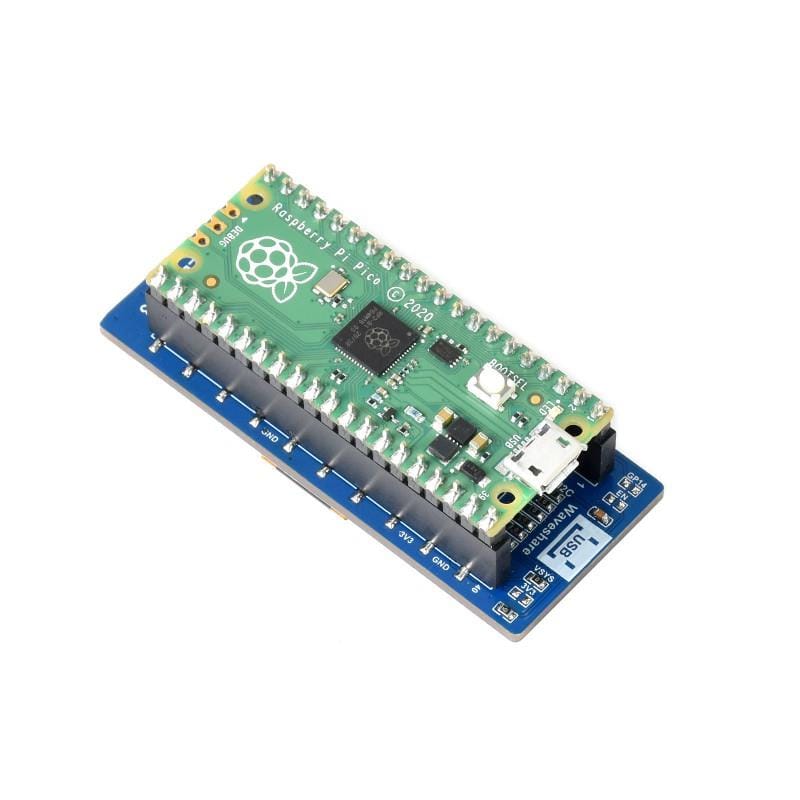

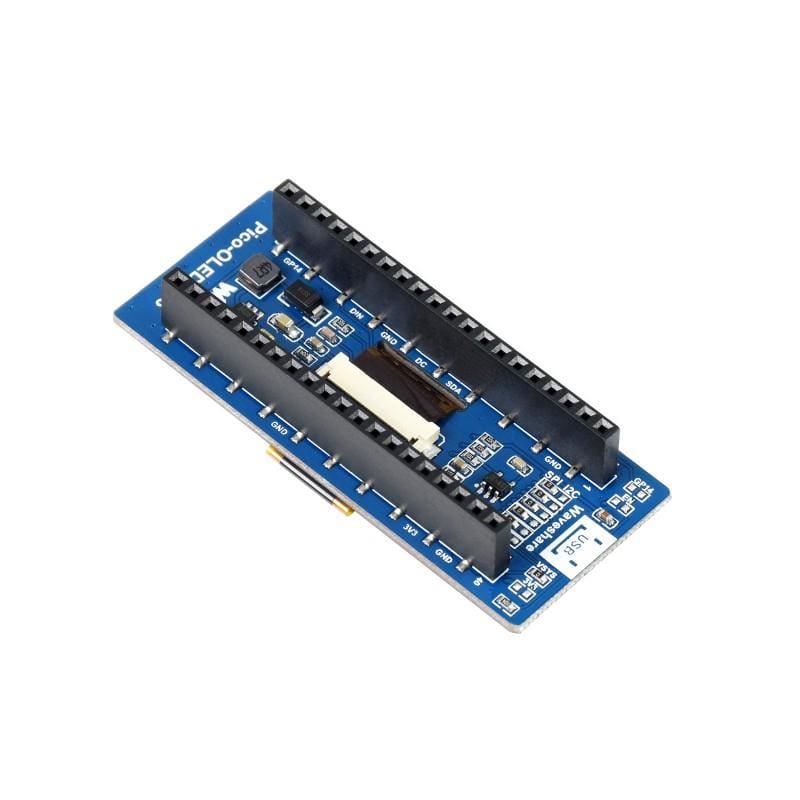

The display is black with white characters and has a 128x32 resolution. Your Pico slots into the pre-soldered female headers on the rear of the display and communication to the Pico is managed via SPI/I2C, which minimises pin usage and maintains a fast data rate.

The online Wiki will help you get up and running quickly and includes C/C++ coding examples to get you started.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Compatible with Raspberry Pi Pico
• 2.23" OLED display
• 128x32 resolution
• Black/white display
• SPI/I2C communication
• SSD1305 driver
• Online development resources and manual (Raspberry Pi Pico C/C++ examples)

Specifications

• Logical Voltage: 3.3V
• Operating Voltage: 3.3V/5V
• Communication Interface: 4-wire SPI, I2C
• Display Panel: OLED
• Driver: SSD1305
• Viewing Angle: >160°
• Resolution: 128x32 Pixels

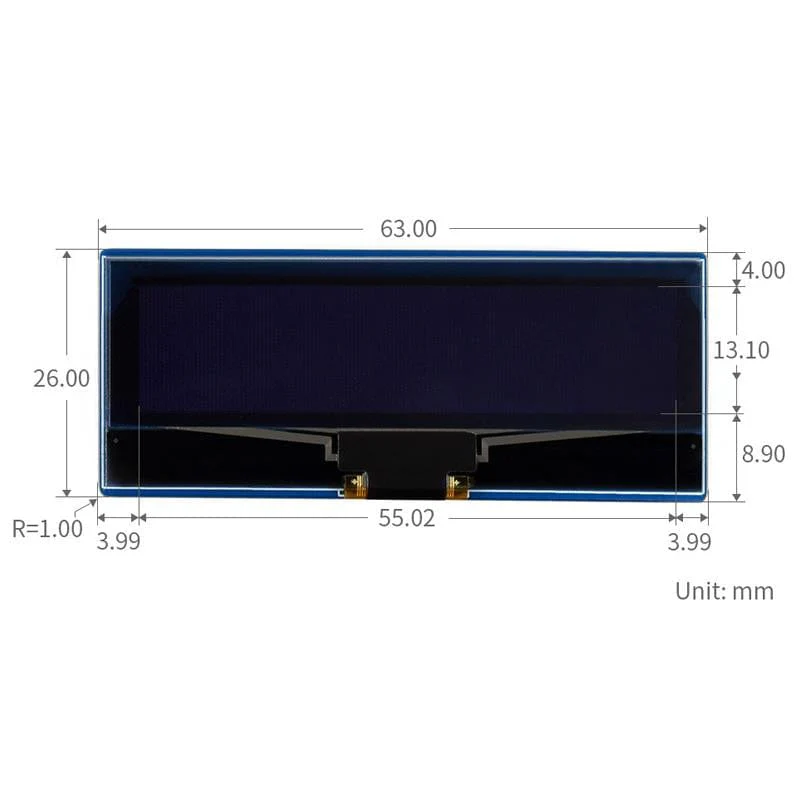

• Display Size: 55.02mm x 13.10mm
• Pixel Size: 0.41mm x 0.39mm
• Dimensions: 63mm x 26mm

Package Contents

• 1x Pico 2.23" OLED display

Raspberry Pi Pico not included

Resources

• Product Wiki

Pinout
