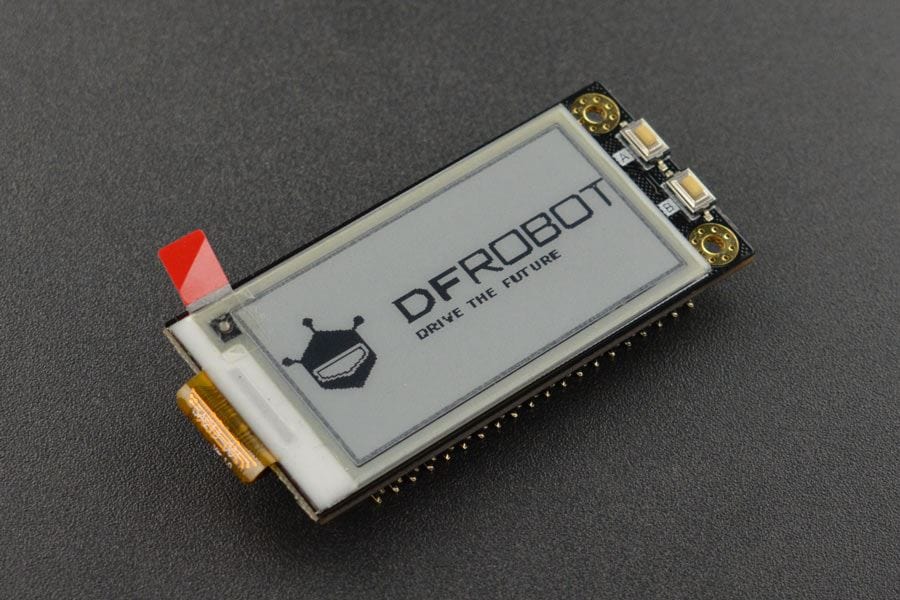

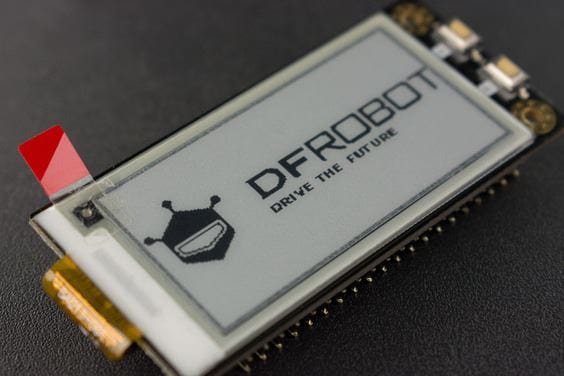

2.13" E-ink Display Module for Raspberry Pi
This Raspberry Pi e-ink display module comes with a 2.13" screen with a resolution of 250×122, adopting the SPI interface to communicate with Raspberry Pi.

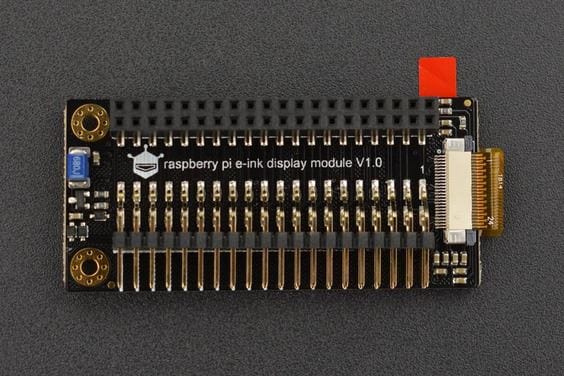

It leads out the GPIO pins on the Raspberry Pi so there are no conflicts if you need to use the e-ink display and Raspberry Pi’s pins at the same time. It also supports custom fonts (ttf)!
Unlike other e-ink displays, this board includes two switches on the front for expanding your project with inputs. This e-ink display has a compact layout and low power consumption. It can provide a clear display even in sunlight.
When powered off, the e-ink display will continue to display the last screen. Since it will take a long time for the display to refresh fully, we don’t recommend using the product in the application that needs frequent refreshing to display data.
Specification
- Operating Voltage: 3.3V
- Resolution: 250 x 122
- Interface Type: SPI
- Colour: black, white
- Refresh Way: fully or partially refresh
- Refresh Time: 3s for a full refresh, 680ms for a partial refresh
- Refresh Power: 26.4mW（typ.）
- Standby Power: 0.017mW
- Visual Angle: >170°
- Connector: 2.54mm 2*20pin

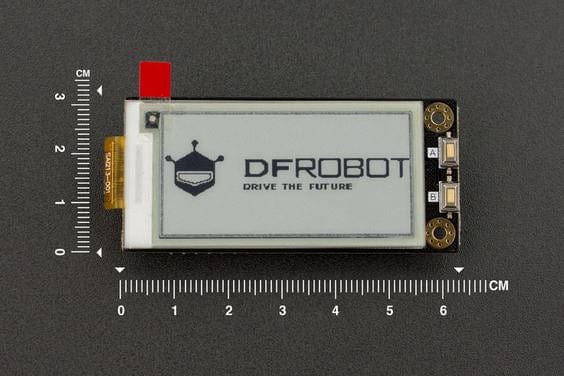

- Dimension: 66.5 x 31 mm/2.62x1.22”
- Storage Temp: -20℃~+60℃
Documents
- Product wiki

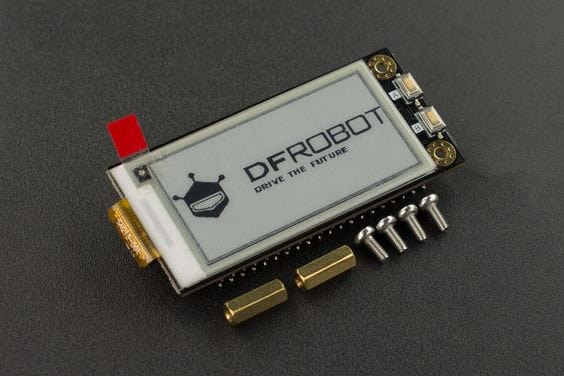

Shipping List
- 1x Raspberry Pi e-ink Display Module
- 2x Double Nuts Copper
- 4x Screw
