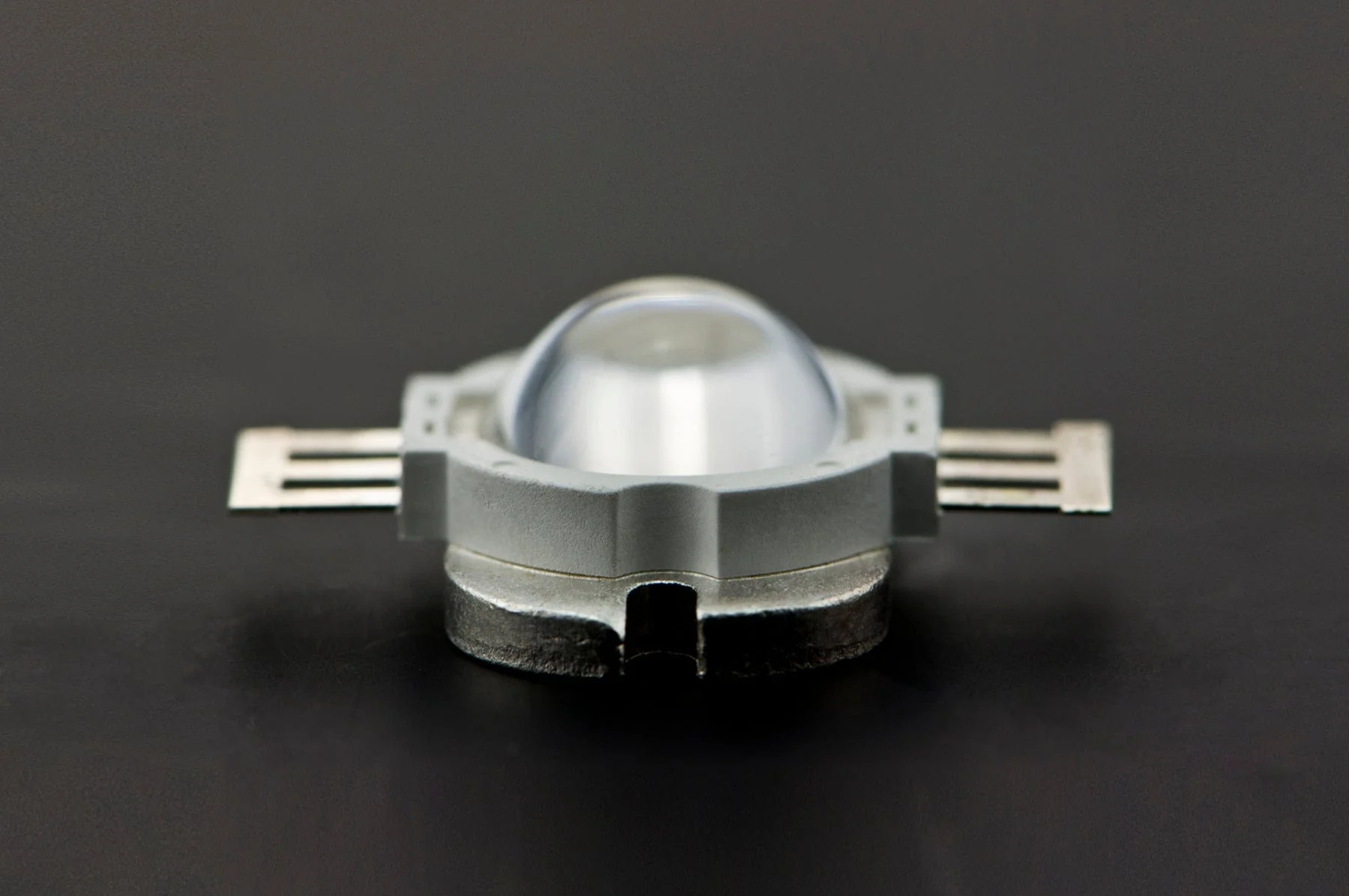

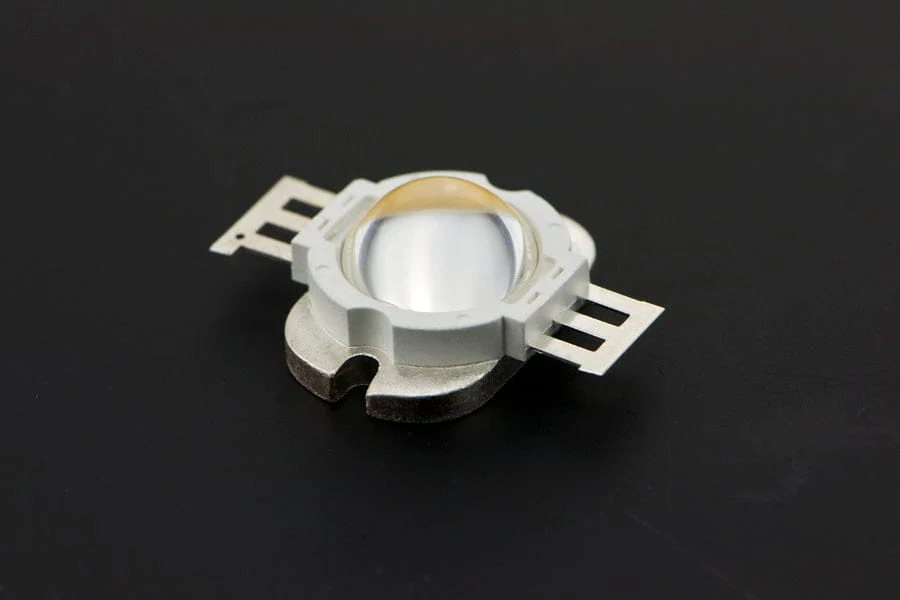

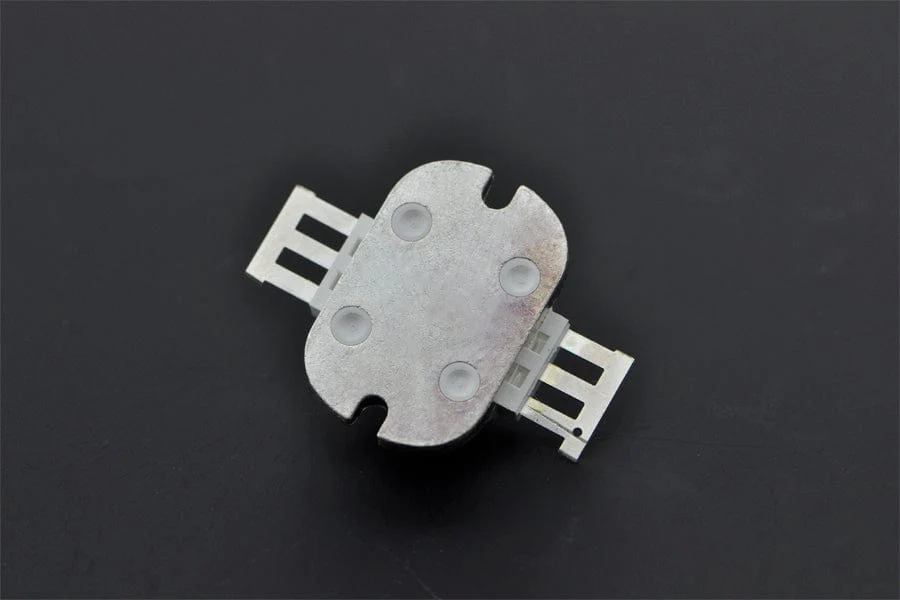

10W Super Bright LED - Warm White with 60 Degrees Lens

This 10W super bright LED can be used as a flash searchlight for your robot projects. It consists of 9 separate LEDs and has a luminance of 500LM. The 60 degrees lens for focusing the light. Comes in various colors.

Warning : If you use the full power, LED will be very hot. Please use Heat Sink to cool it down.

• Rated Power: 10W
• Luminance: 500LM
• Working Voltage : 9V-11V（With Heat Sink); 7.5V-8.5V（Without Heat Sink）
• Rated Current: 1000mA
• Color Temperature: 3000K-4000K
• Angle: 120°
• Working Temperature: -20°C ~ 60°C
• Reserving Temperature: -20°C ~ 60°C
• Size: 29mm*23mm(1.14"*0.91")
• Weight: 10g

• Datasheet
• Circuit Diagram

• Super Bright LED - Warm White with 60 Degree Lens x1
