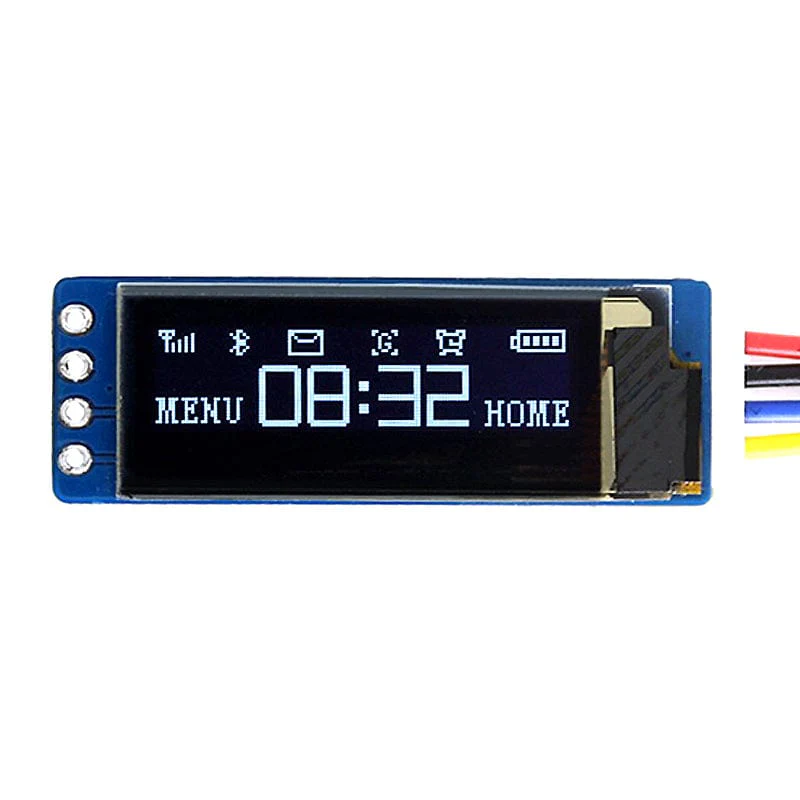

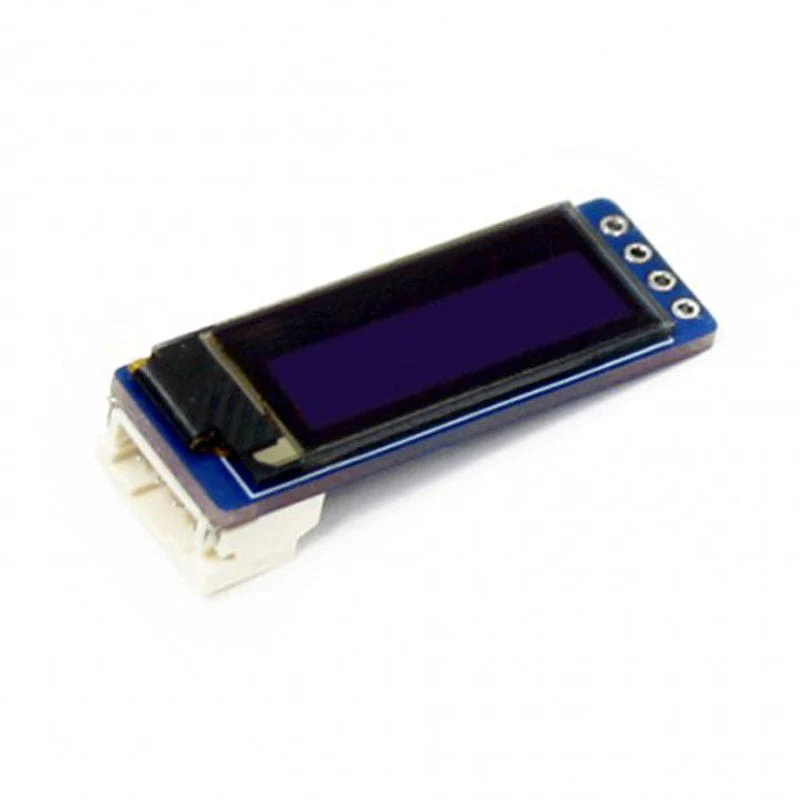

0.91" OLED Display Module

This is a general OLED module for adding a small display to your project - great for robots, data monitors and more! The module is 0.91" diagonal, 128x32 pixels, with an embedded controller communicating via I2C interface.

Features

• 0.91" small form factor
• 128x32 high resolution
• I2C interface requires only two signal pins
• Comes with development resources and manual (examples for Raspberry Pi)

Resources

• Product Wiki

Specifications

• Driver: SSD1306
• Interface: I2C
• Display colour: White
• Resolution: 128x32
• Viewing angle: >160°
• Operating voltage: 3.3V / 5V
• Dimension: 36 x 12.5 (mm)

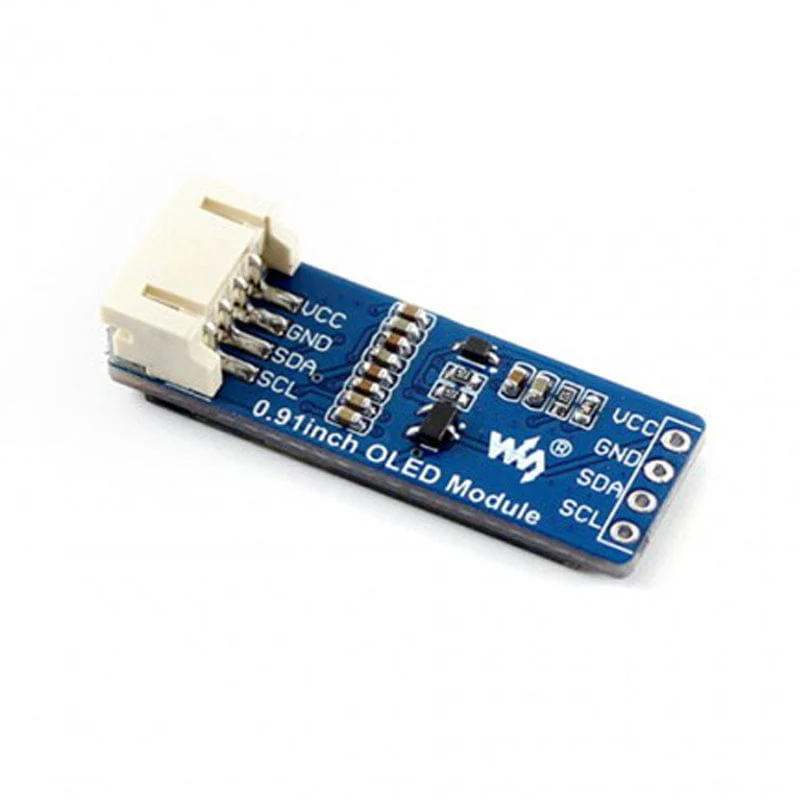

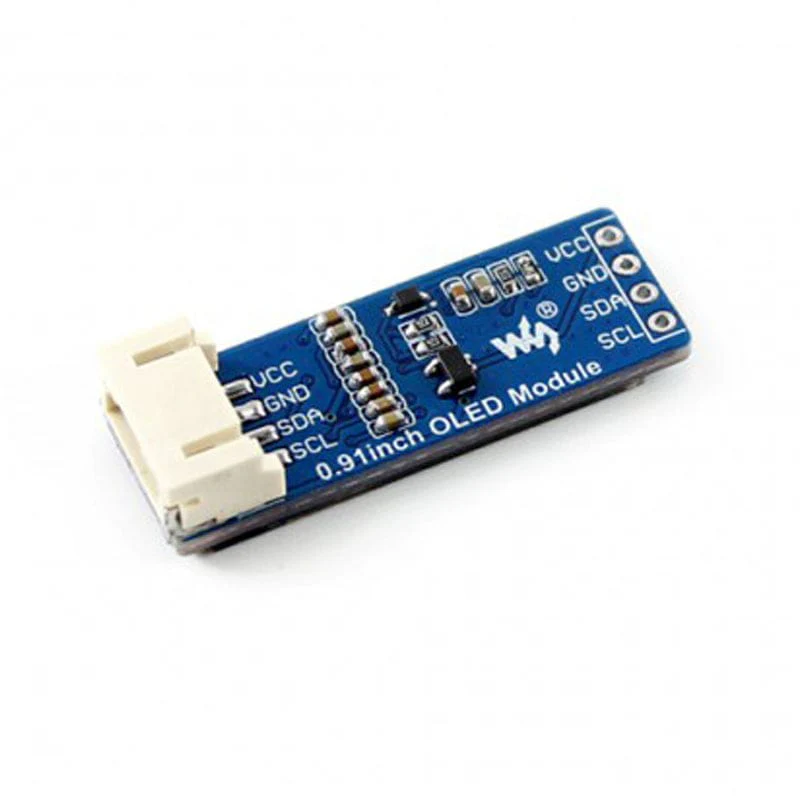

Interface

SYMBOL	DESCRIPTION
VCC	Power (3.3~5V input)
GND	Ground
SDA	Data input
SCL	Clock input
